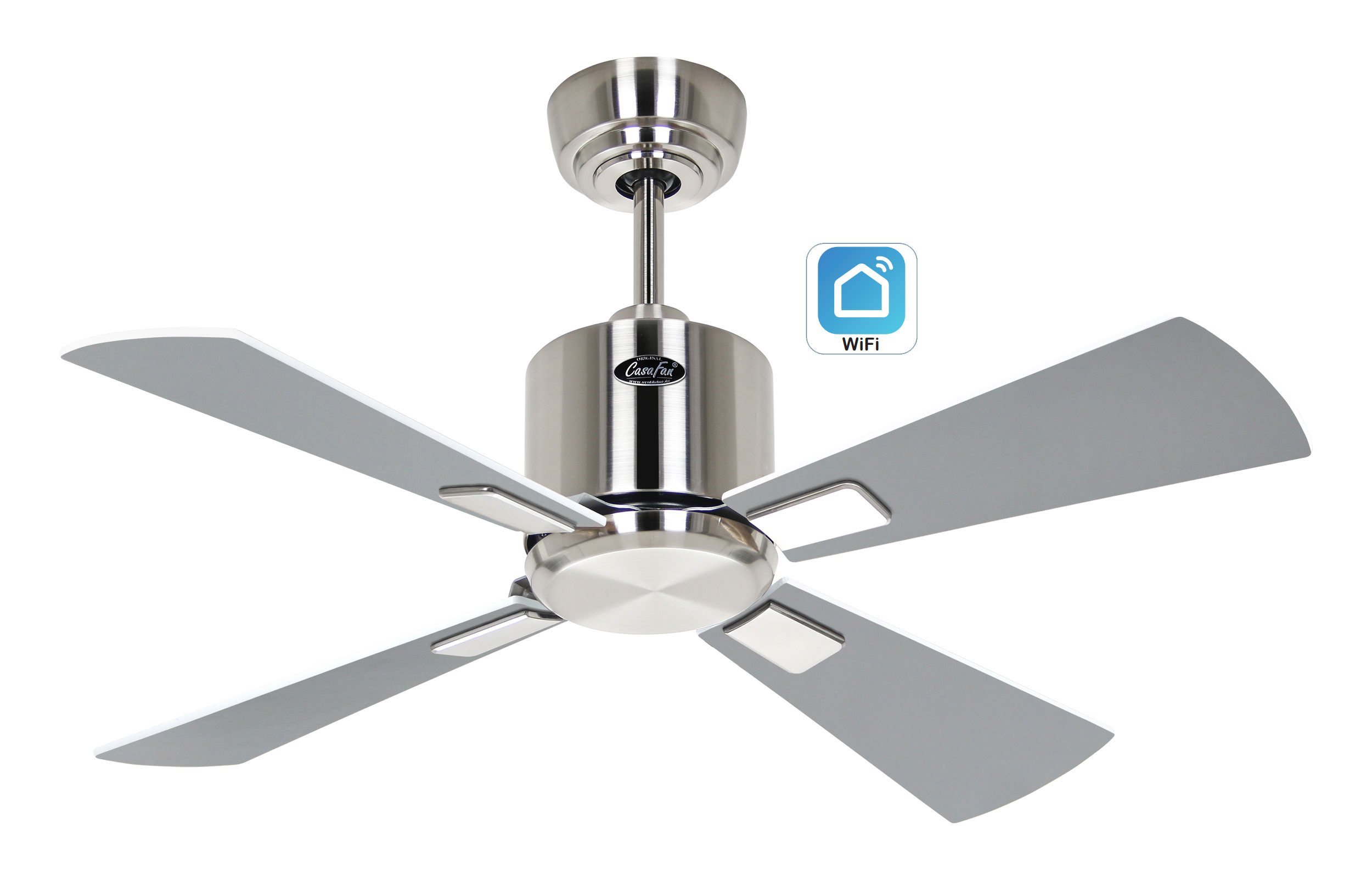

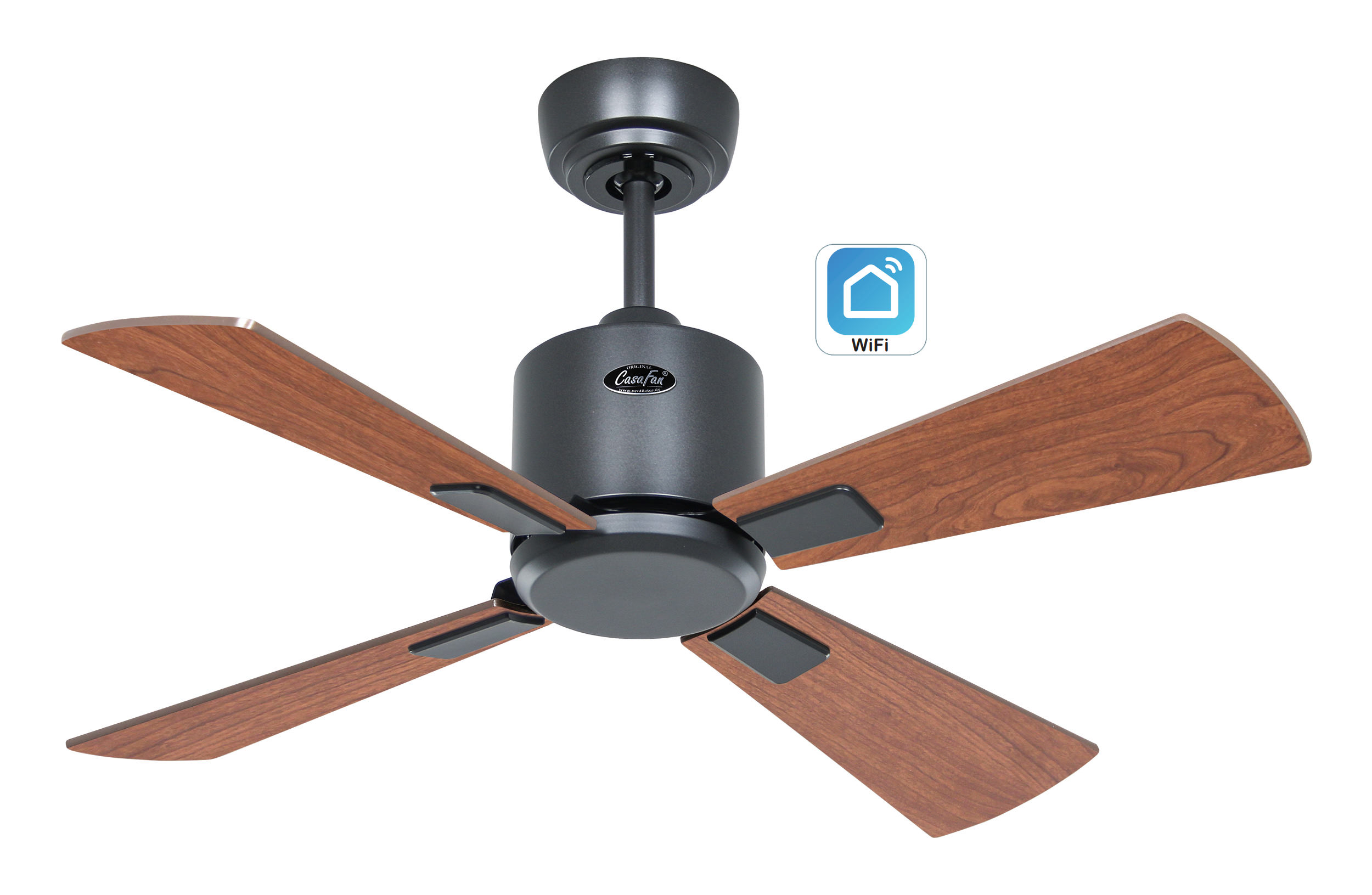

CasaFan Eco Neo III 92cm/36″, 103cm/132cm/152cm/180cm, Smart WiFi DC Ceiling Fan, 25 Year Warranty
£449.99Original price was: £449.99.£399.98Current price is: £399.98.
The Casa Eco Neo III is one of the best selling Casa fans in Europe and is configurable in a large number of motor and wooden blade finishes. It’s simple design can have 2, 3 or 4 blades in 5 sizes ranging from 92cm to 180cm and is wifi enabled for the Smart Life app. It is a low energy DC type fan with a patented motor that provides a great airflow for rooms up to 45m2 coupled with silent operation at low speeds. Longer downrods, dimmable LED light kits are available and also a hotel GRMS 0-10v control interface. The fan comes with a 25 year motor warranty.
The Casa Eco Neo III is one of the best selling Casa fans in Europe as it ticks all the boxes. As a result it is available in a large number of motor and blade finishes all in 5 blade sizes. Additionally, you can install the no of blades you prefer ie 2,3 or 4 plus it is wifi enabled. The motor is a patented DC low energy fan that provides great airflow coupled with very low noise levels which are below laboratory detectable limits on speed 3 or less. Optional extras available include dimmable LED light kits, drop-rods of 100cm and a wireless wall control. It is also available with 0-10v control to work with hotel GRMS systems.

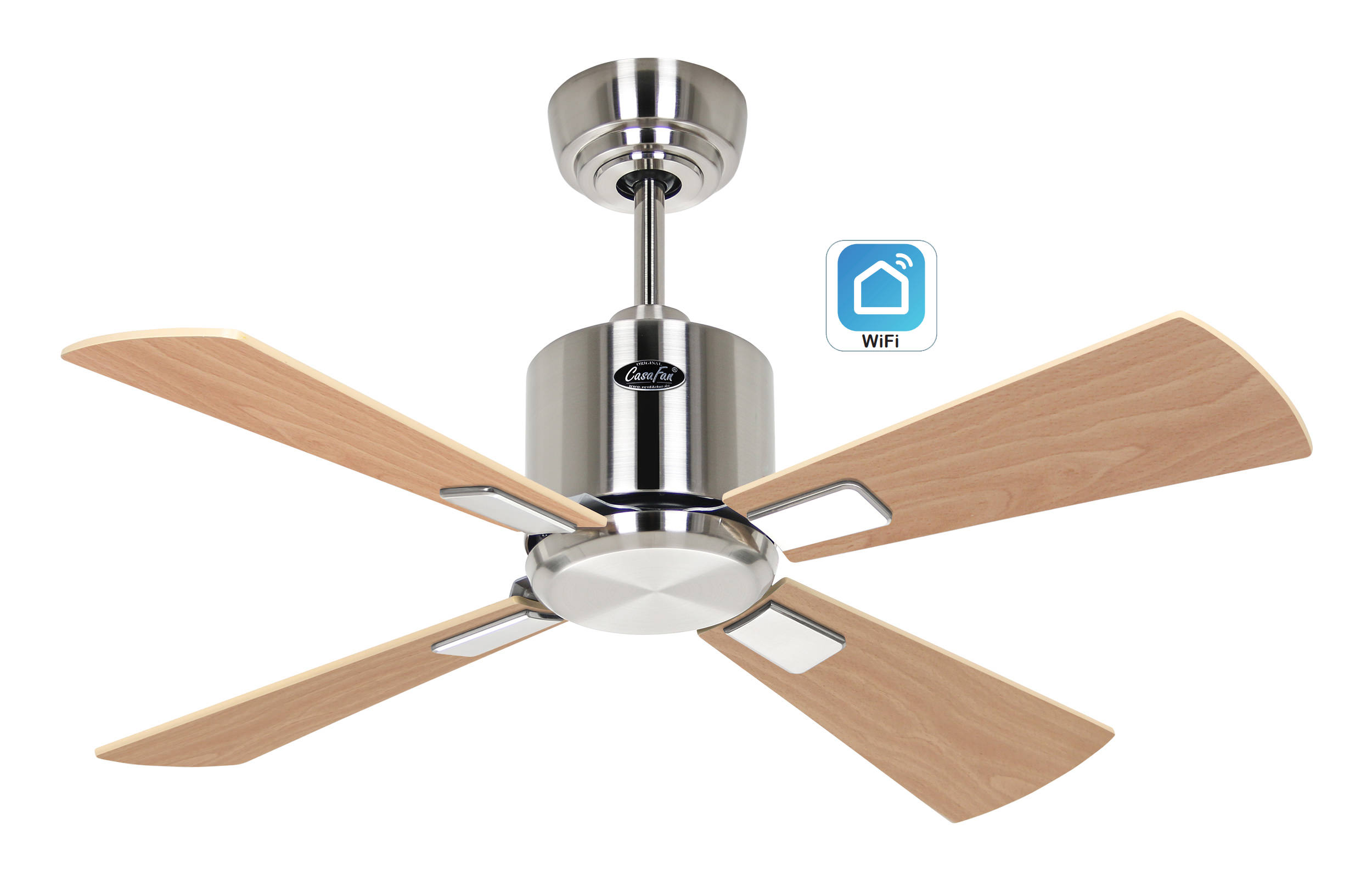

All functions can be controlled with WiFi Smart Life app.
Diameter blade sweep Ø 92 cm. Also available in 103cm, 132cm, 152cm and 180cm blade sizes.
Forward/reverse running for winter heat savings via remote control.
6 levels via hand held remote control or optional wall control (sold separately).
Balanced motor and blades.
Can also be installed on slopes up to 23°.

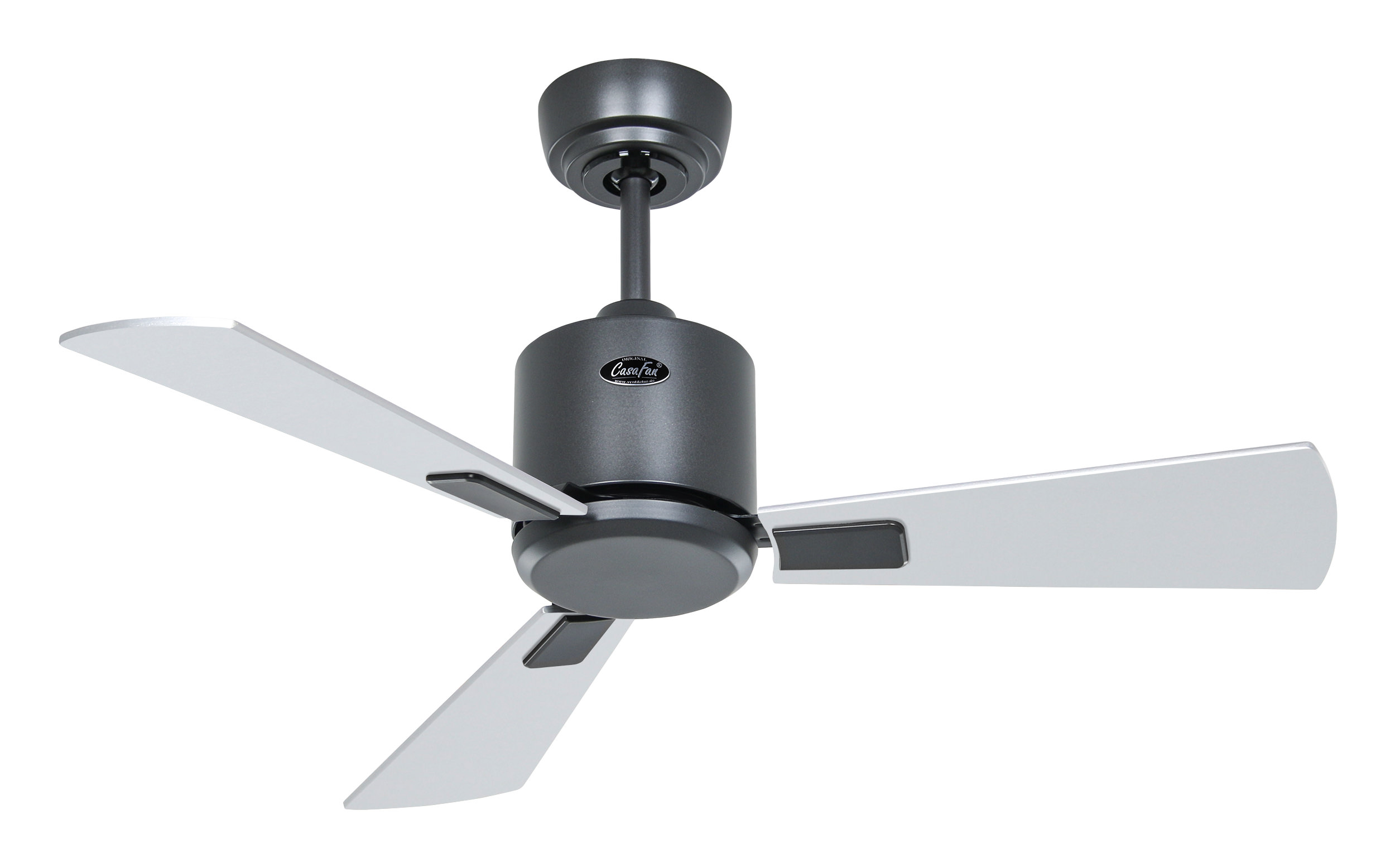

Flexible blade choice – Can be installed with 2, 3 or 4 blades.
Blades are made of seasoned solid plywood.
Silent running – below laboratory detectable limits on speed 3 and under.
Slow motion level.
Energy-saving, patented low energy DC/EC direct current motor technology. Max power used is 12.2 w on full speed of 209 rpm.
100-240 v, 50-60 Hz power feed

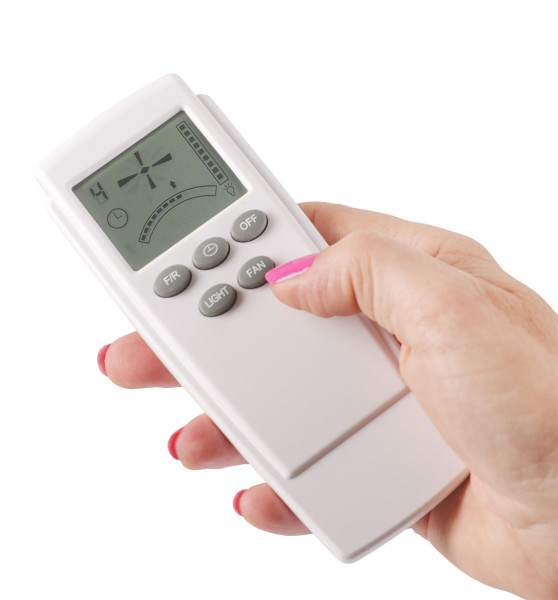

Remote control – motor 6 levels, light dimming, forward/backward running, sleep timer with wall bracket.
Sizing – 92cm for rooms up to 9 m², 103cm for 13m2, 132cm for 25m2, 152cm for 35m2, 180cm for 45m2.
Airflow – 5,750m3/h for 92cm, 11,800m3/h for 180cm
Longer ceiling rods available for high ceilings – 60cm and 100cm long along with couplers to make longer ones.
Distance drop from ceiling to blades 360 mm, 270 mm with short drop rods included (150mm and 800mm)
25 year limited motor warranty, 1 year on the rest of the fan.
Blades Sizes
The Neo is available in 5 different blade sizes 92cm/36″, 103cm/40″, 132cm/52″, 152cm/60 ” and 180cm/71″. The motor is the same but larger blades will move more air at a slower rotation so will be also be quieter.
Room sizes – As a guide for blade sizing 92cm is for rooms up to 9 m², 103cm for 13m2, 132cm for 25m2, 152cm for 35m2, 180cm for 45m2.

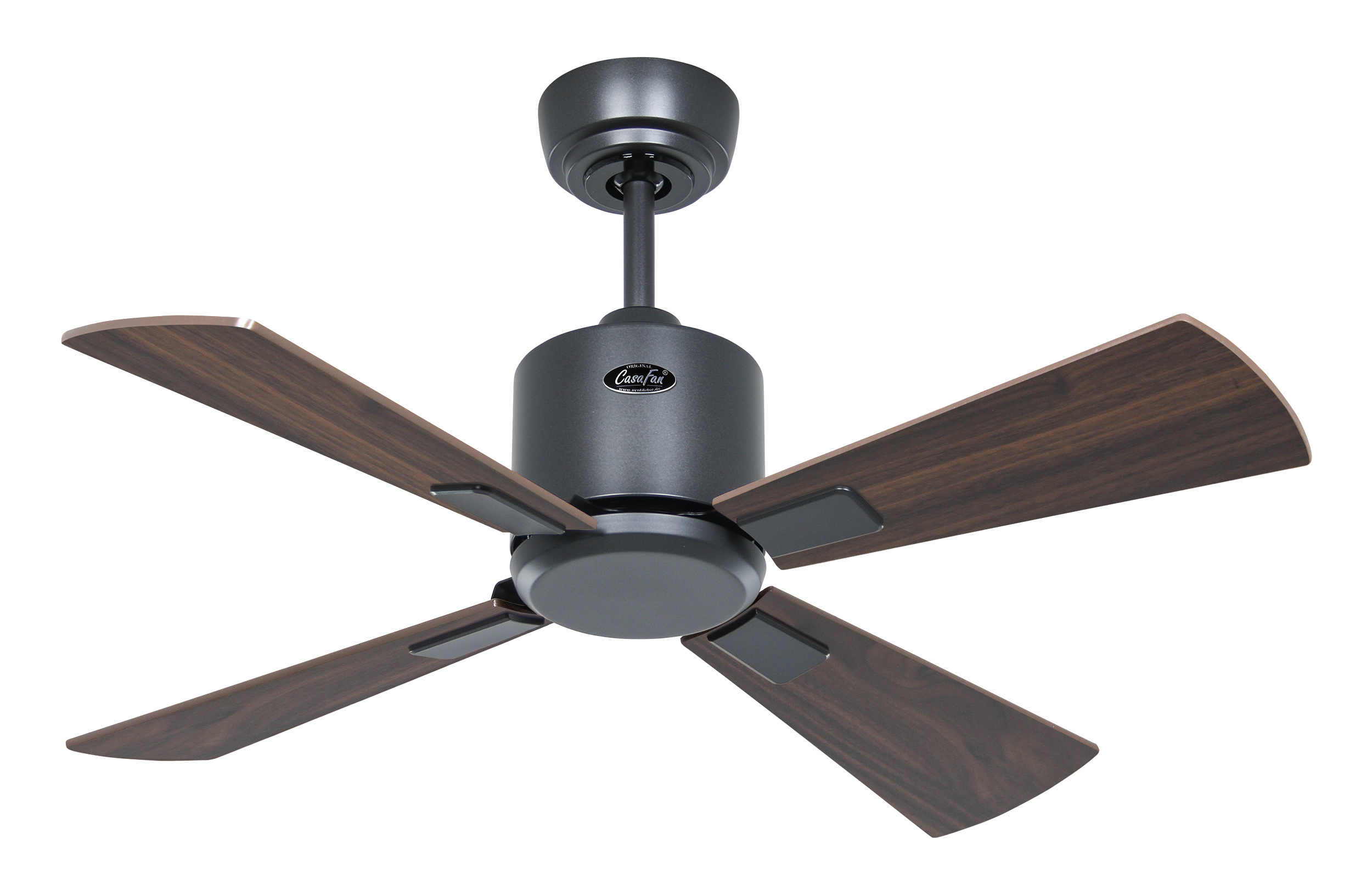

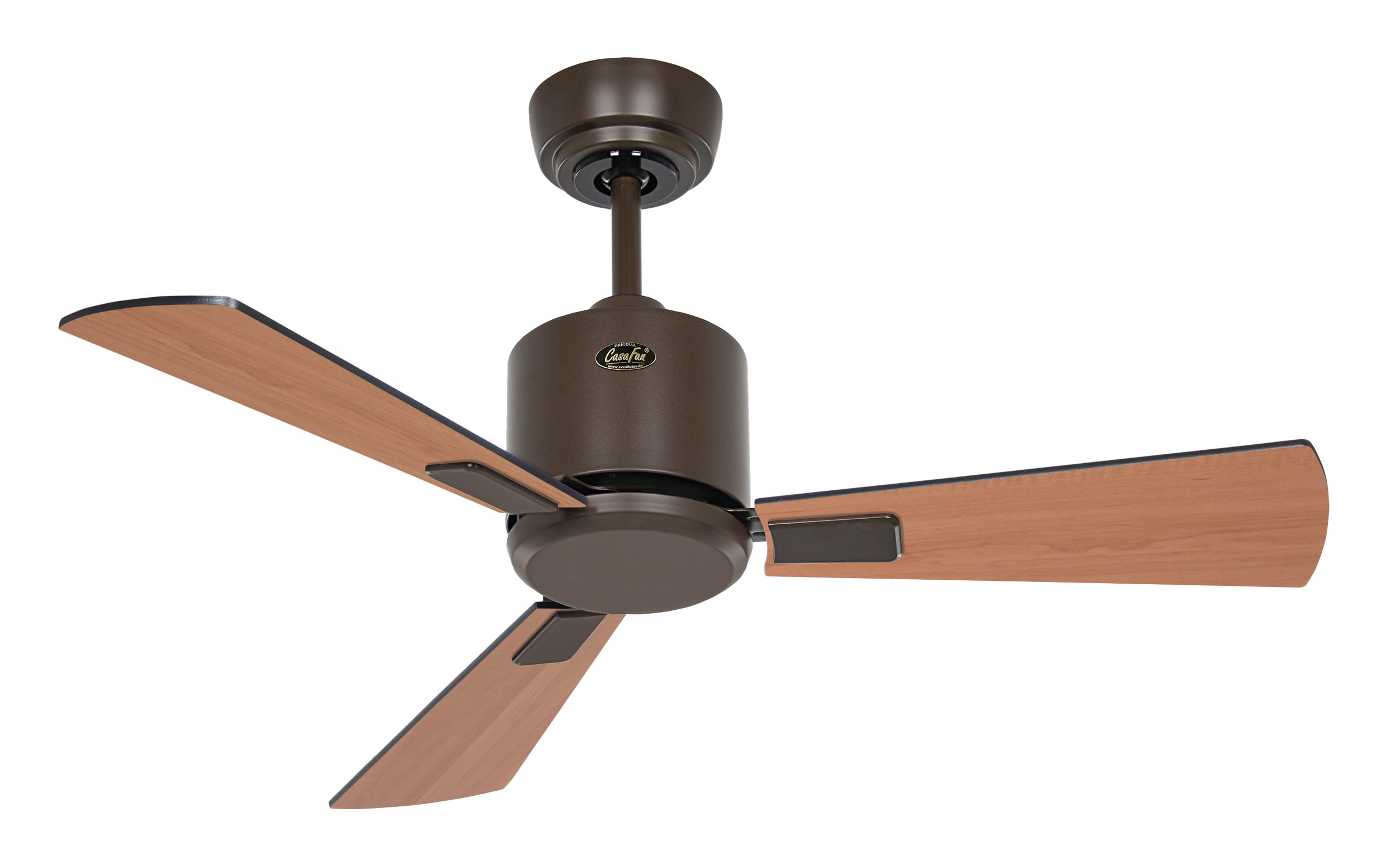

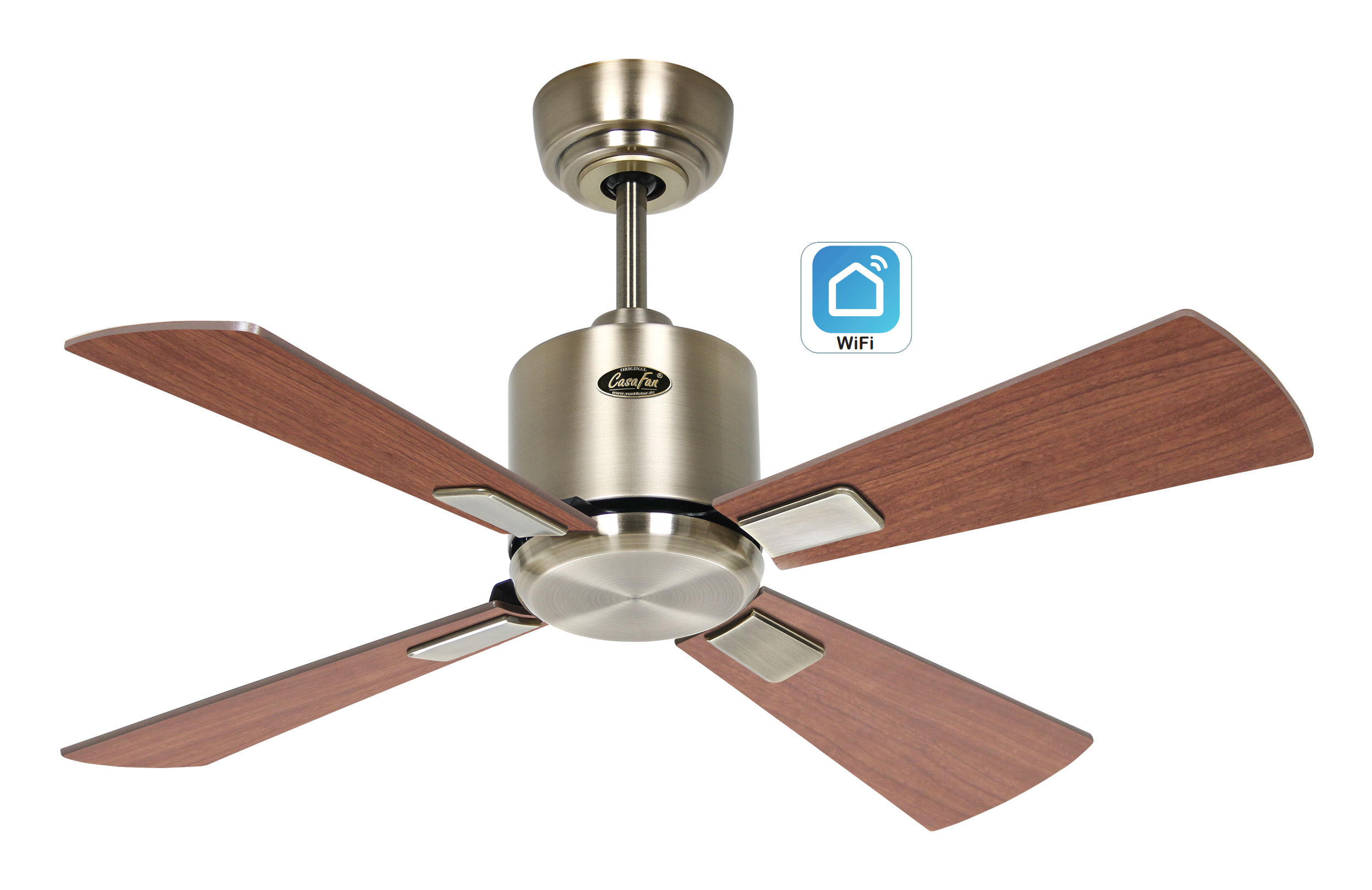

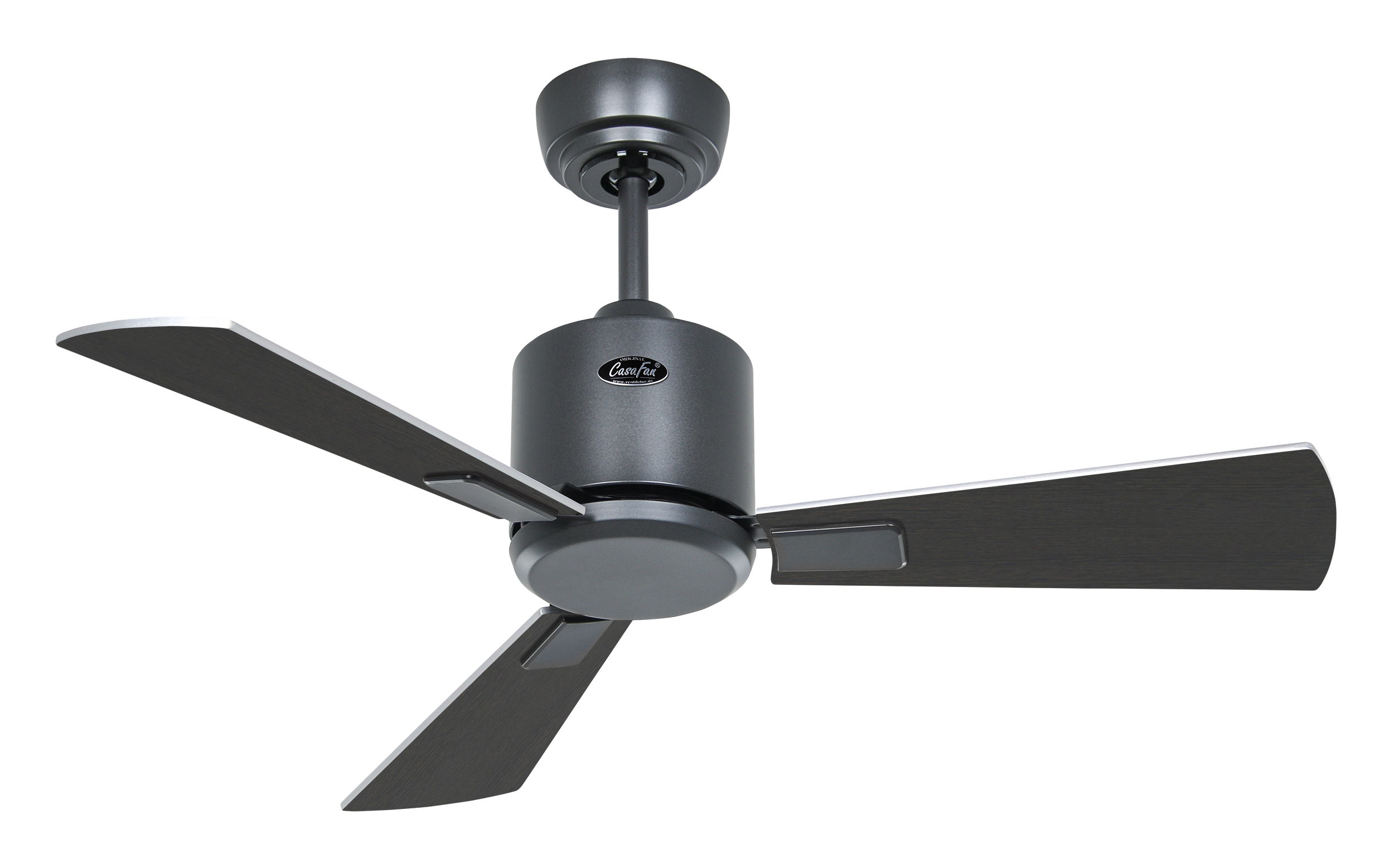

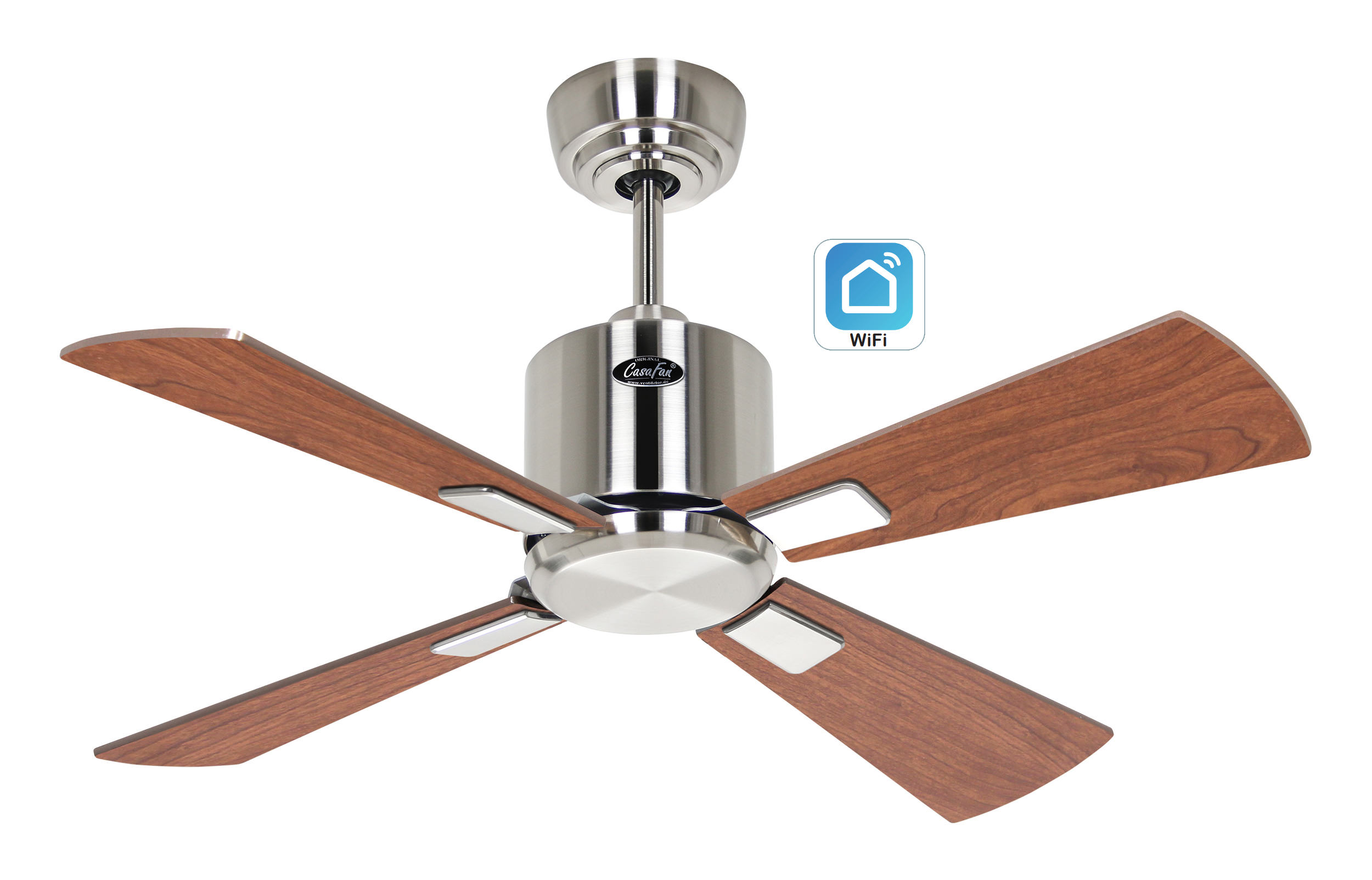

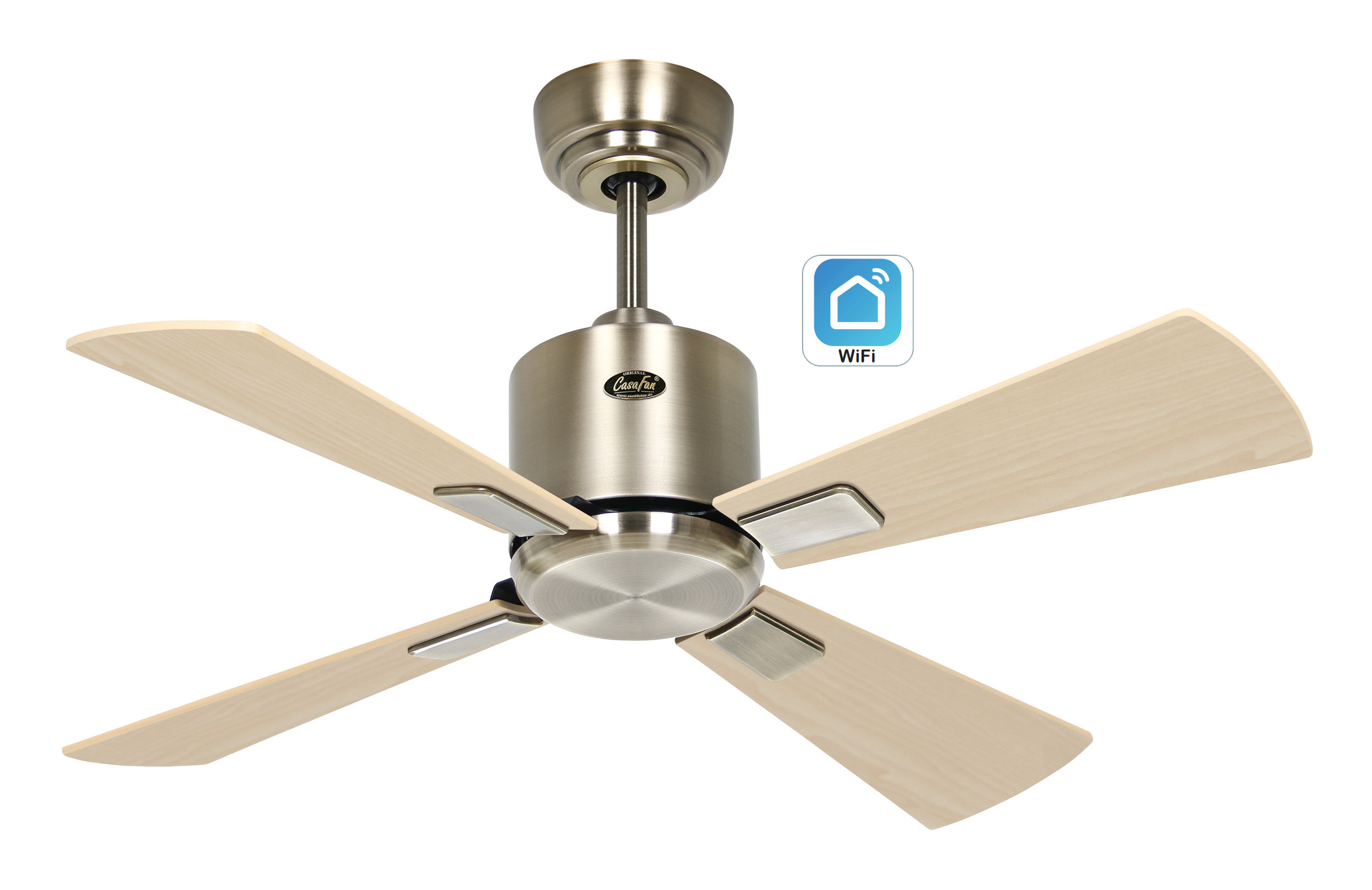

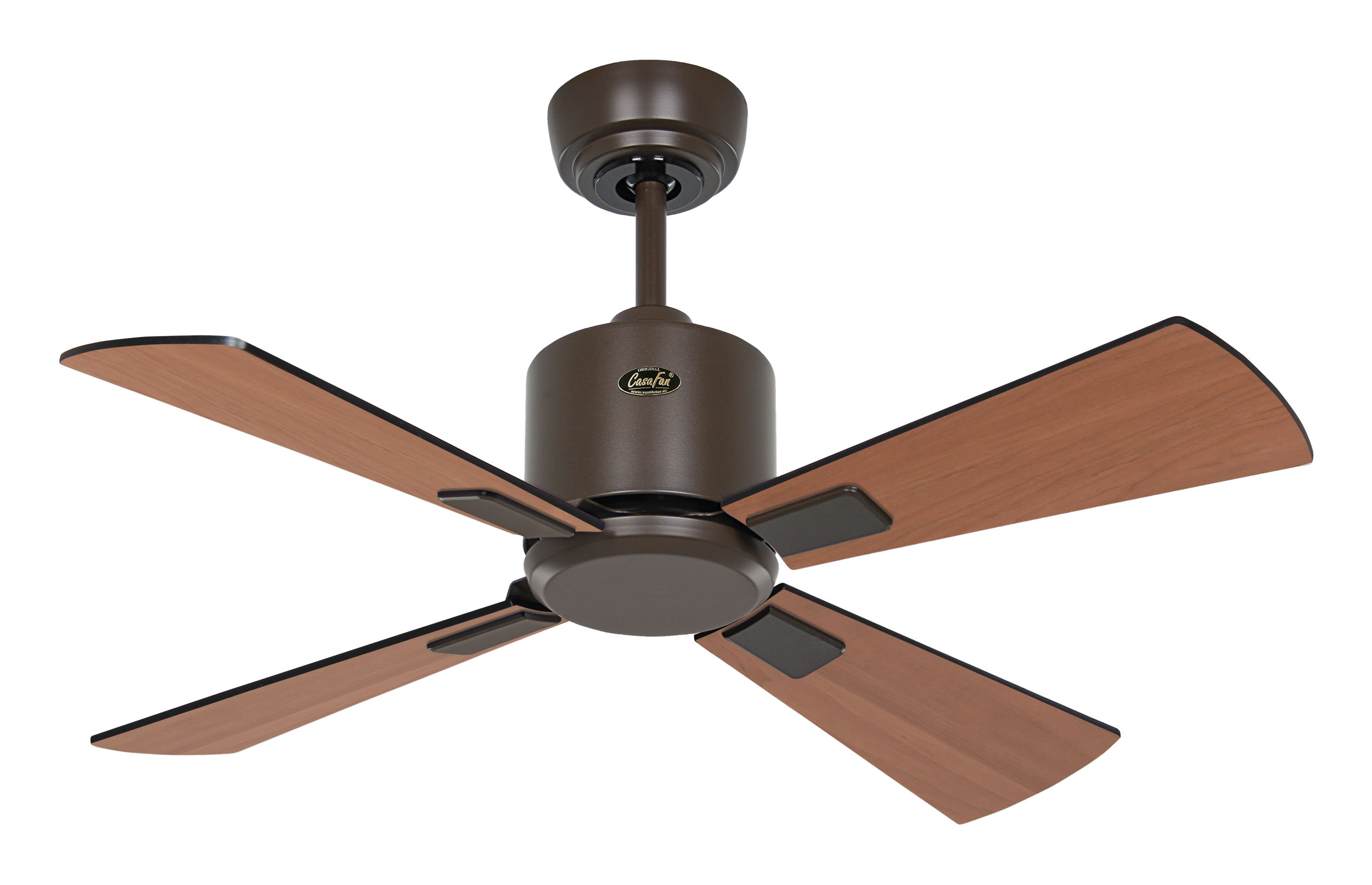

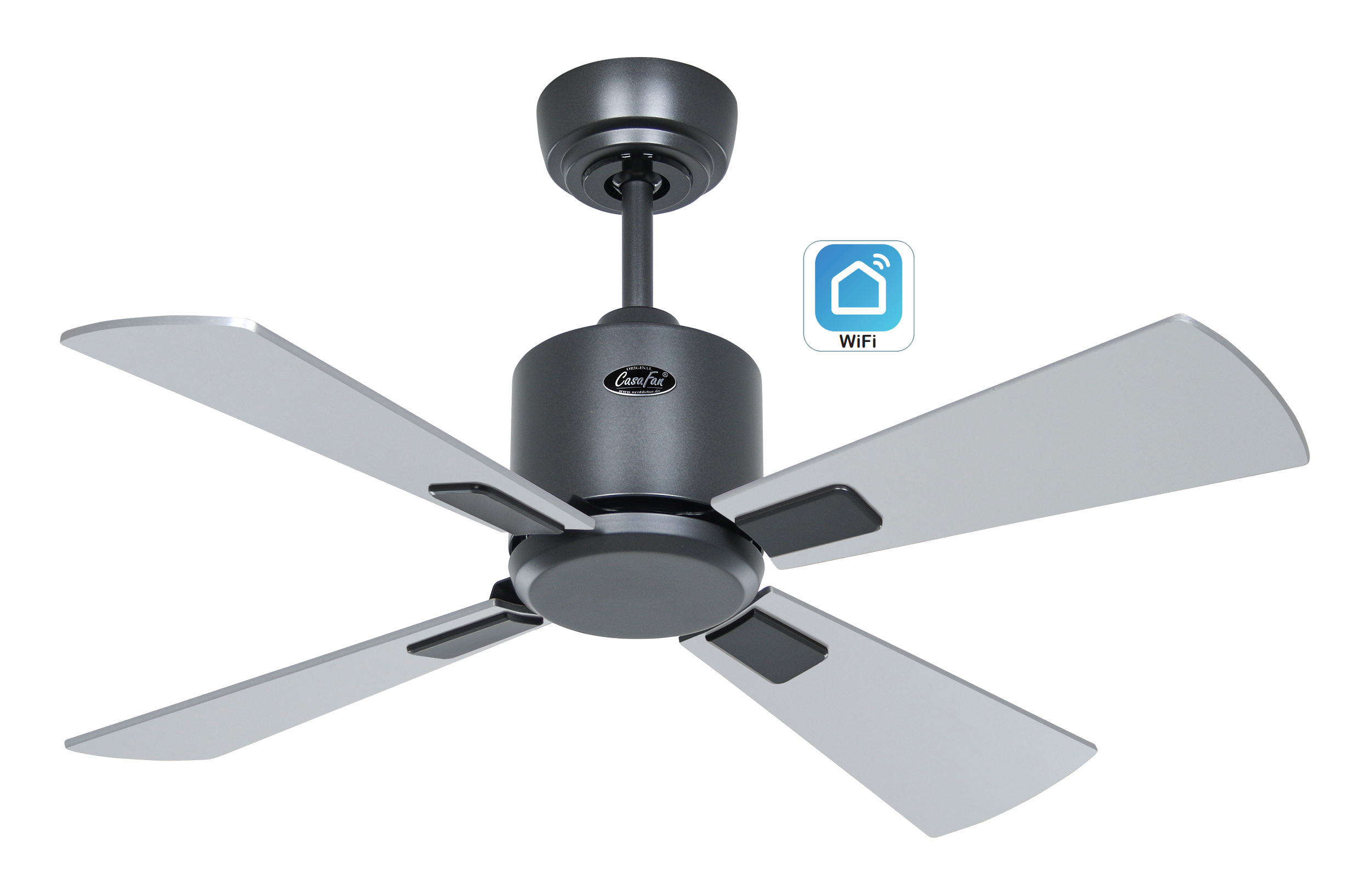

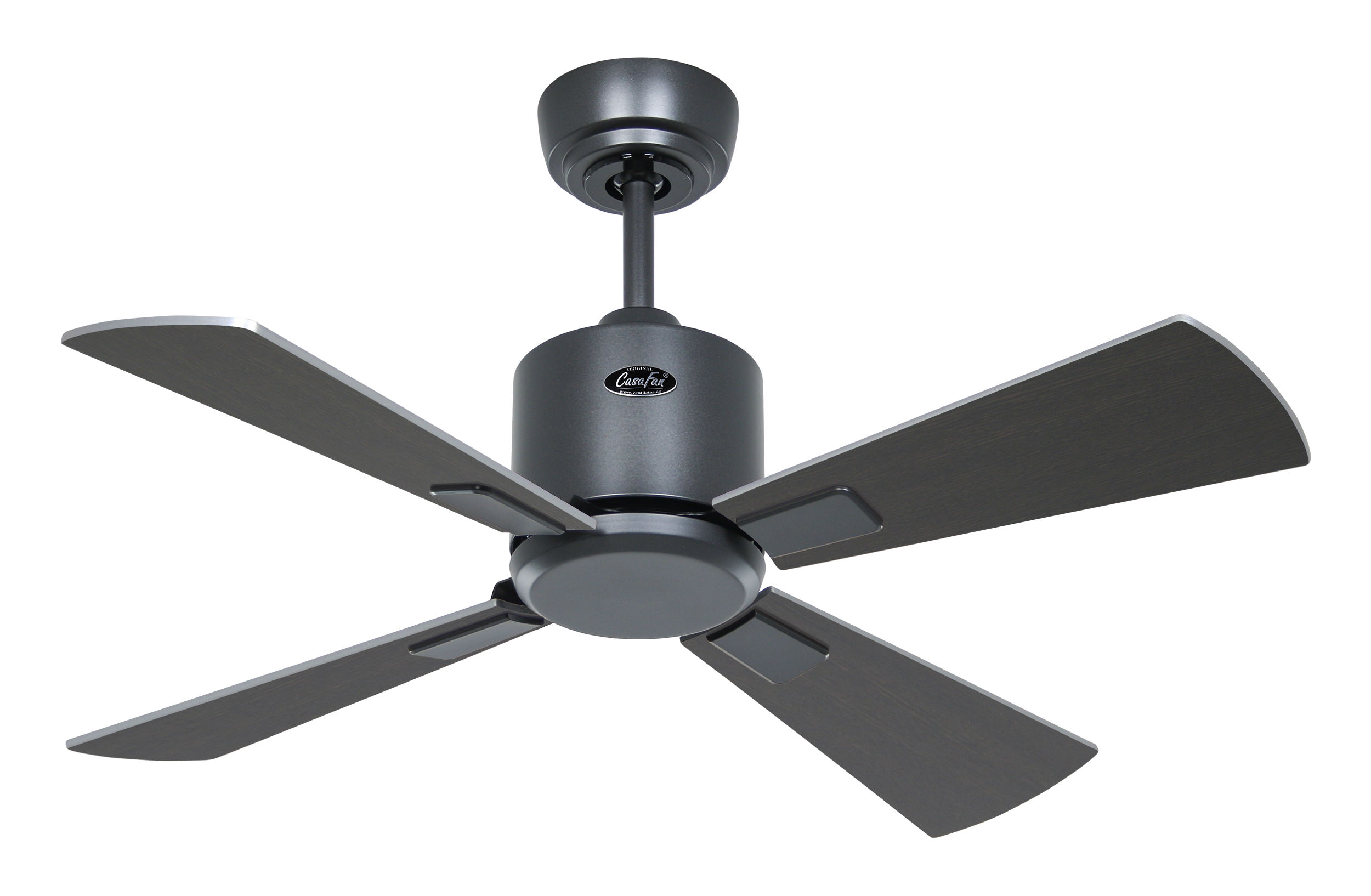

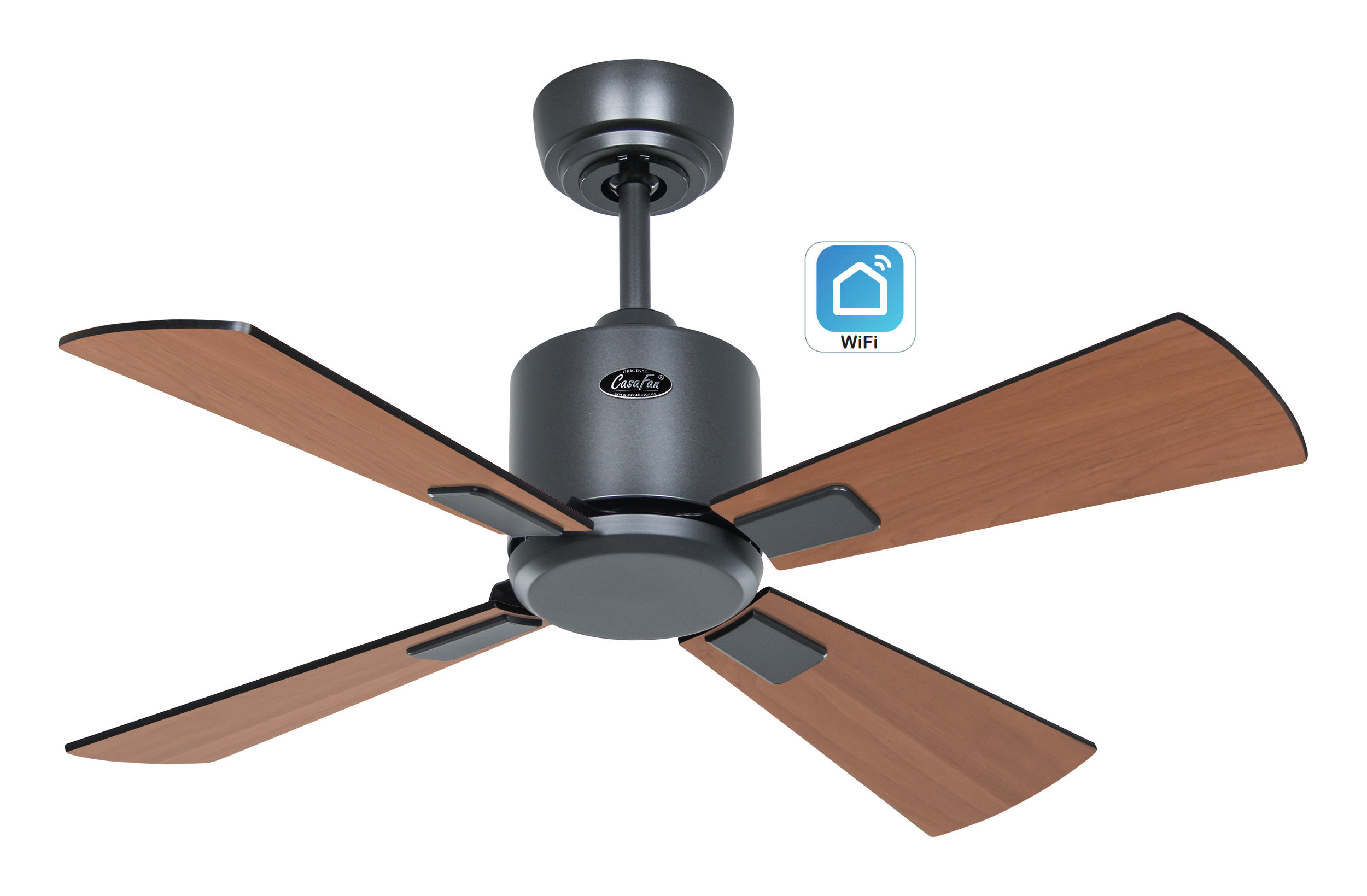

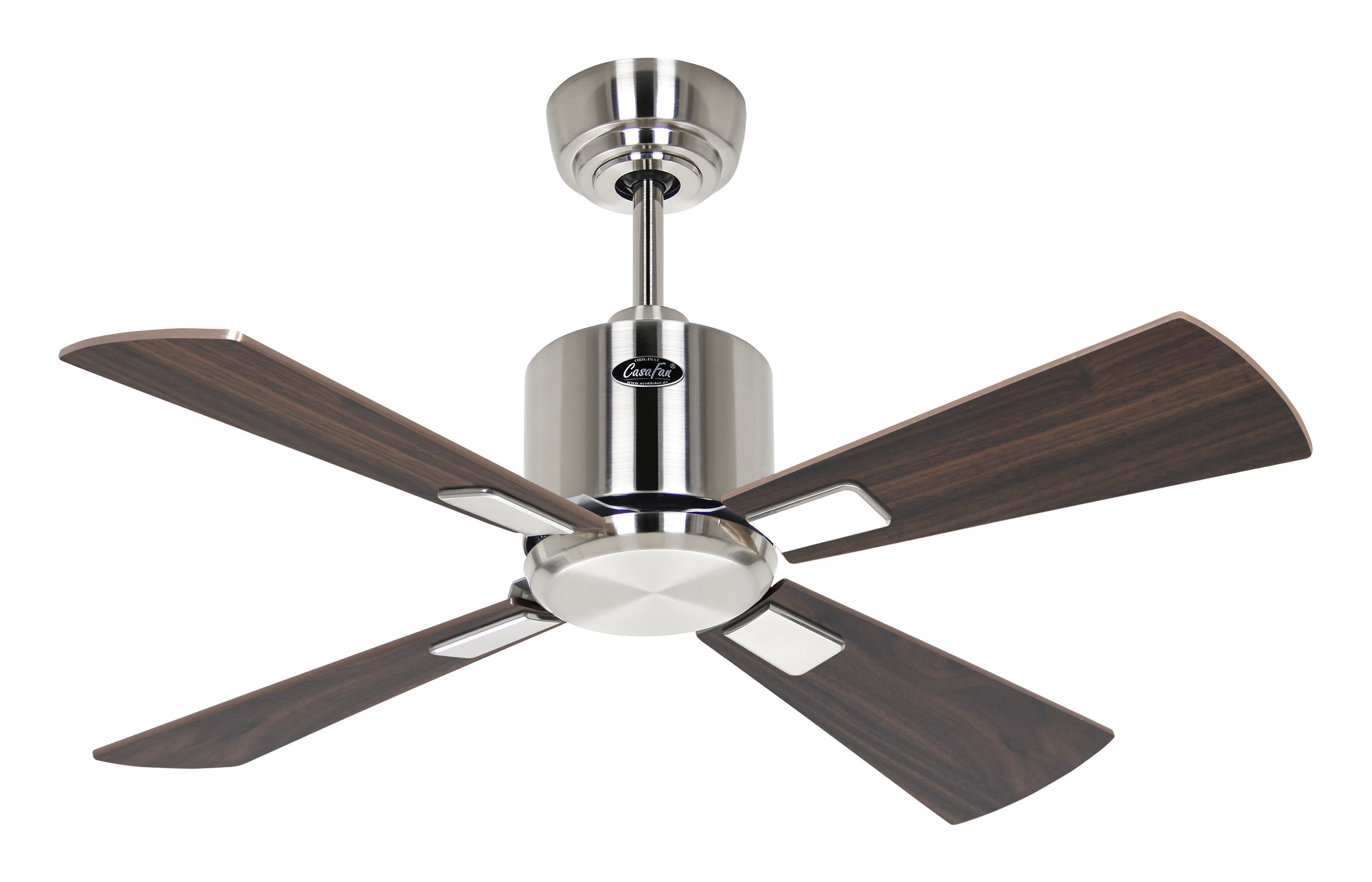

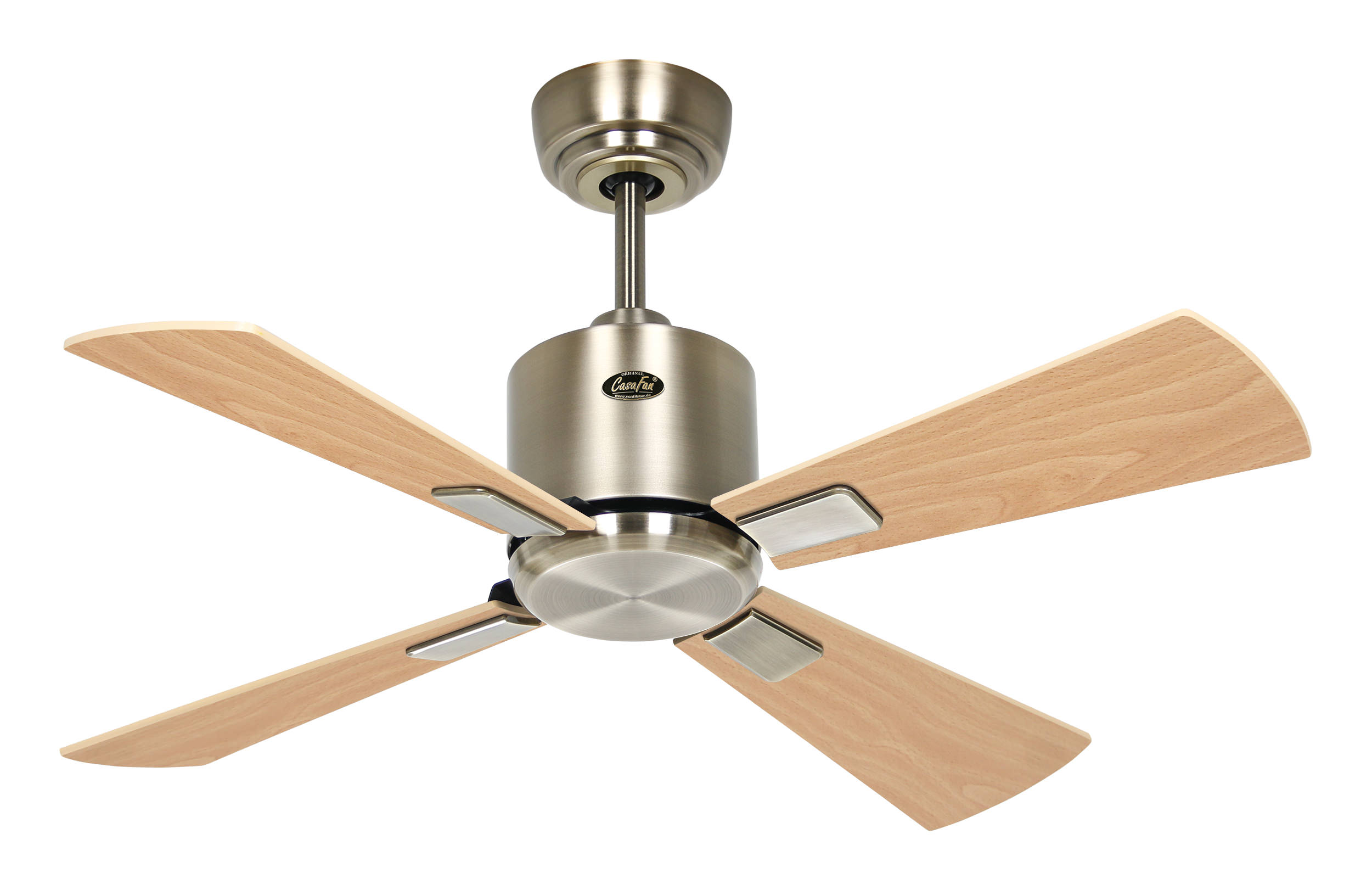

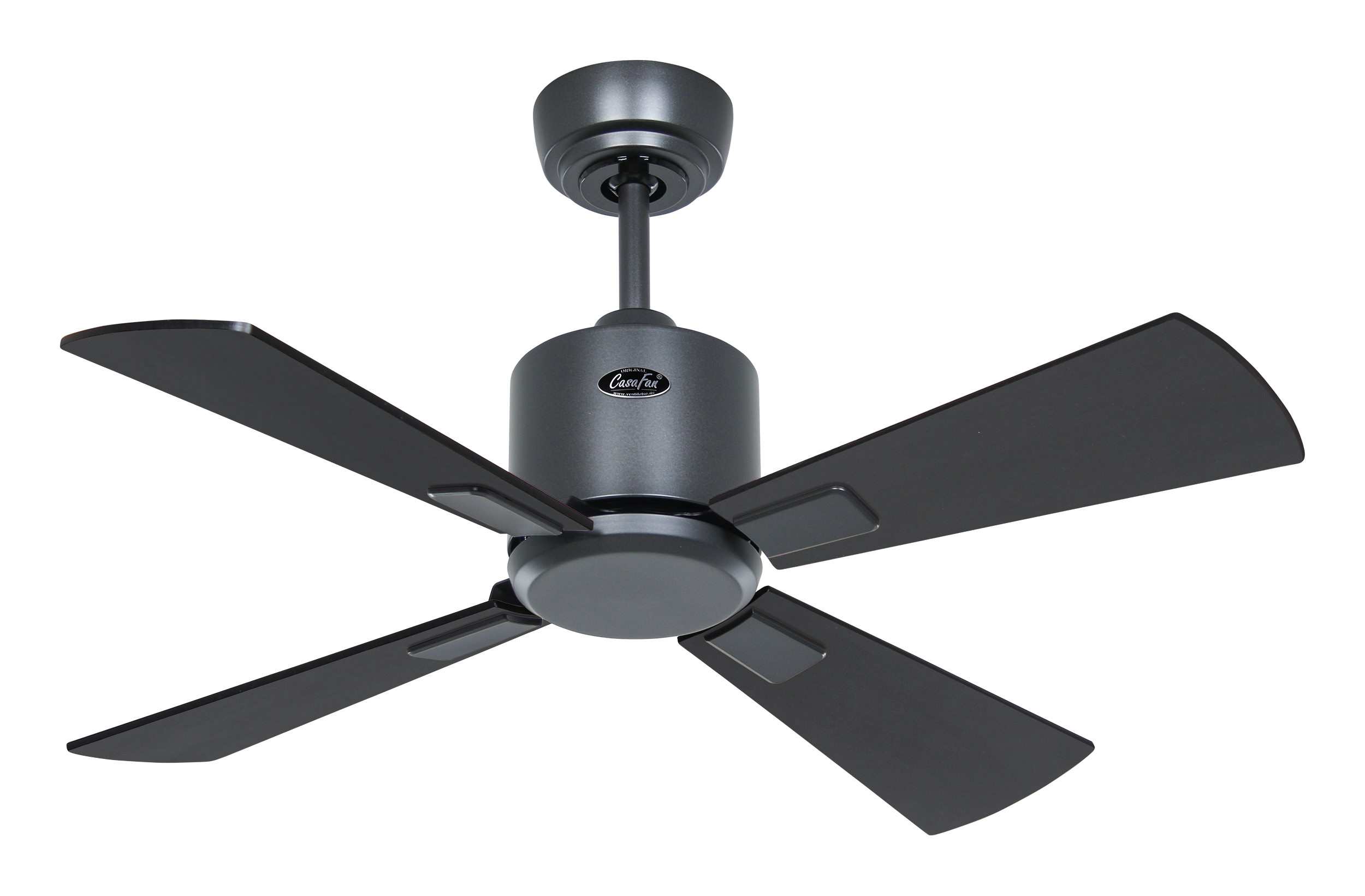

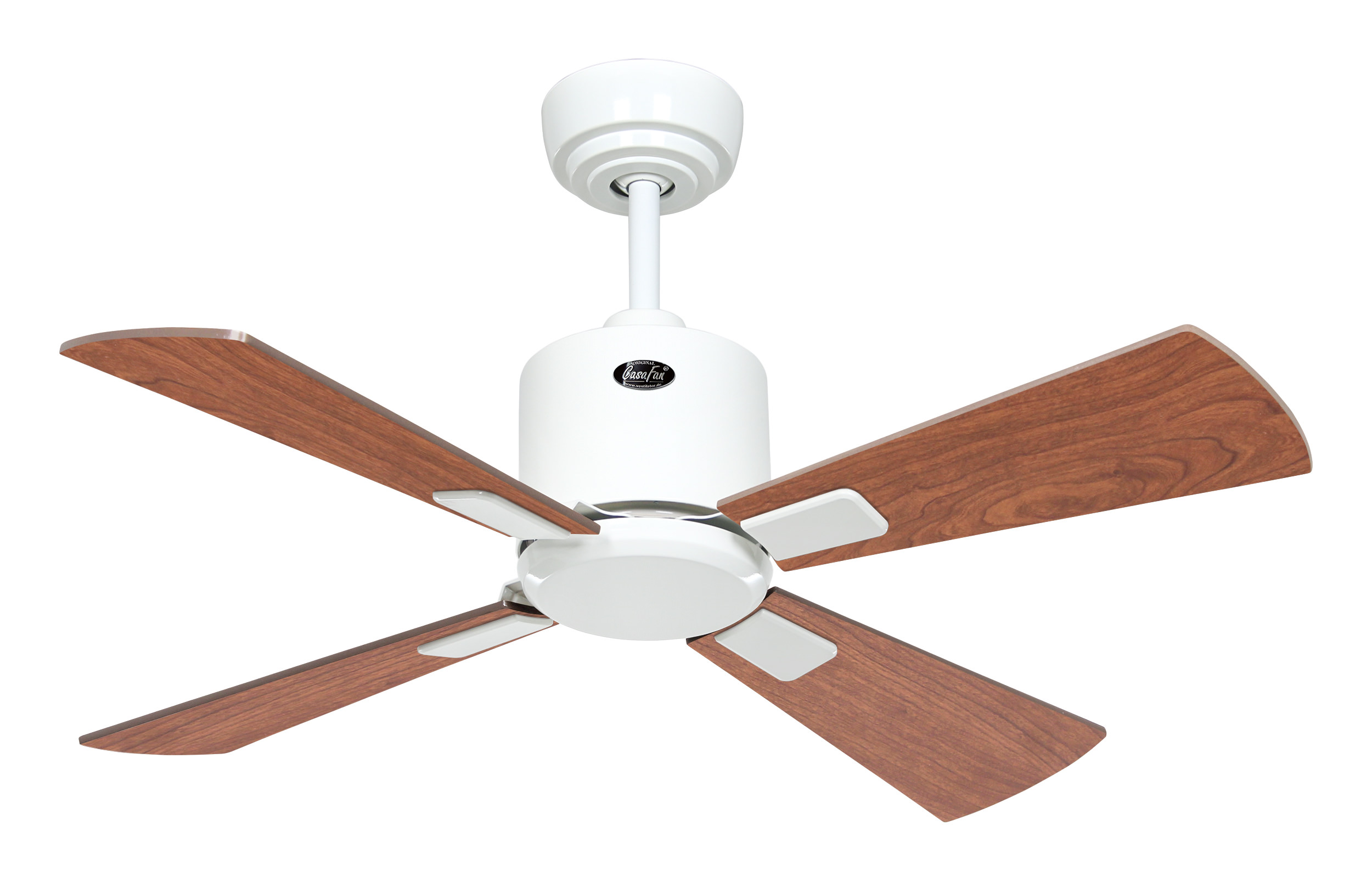

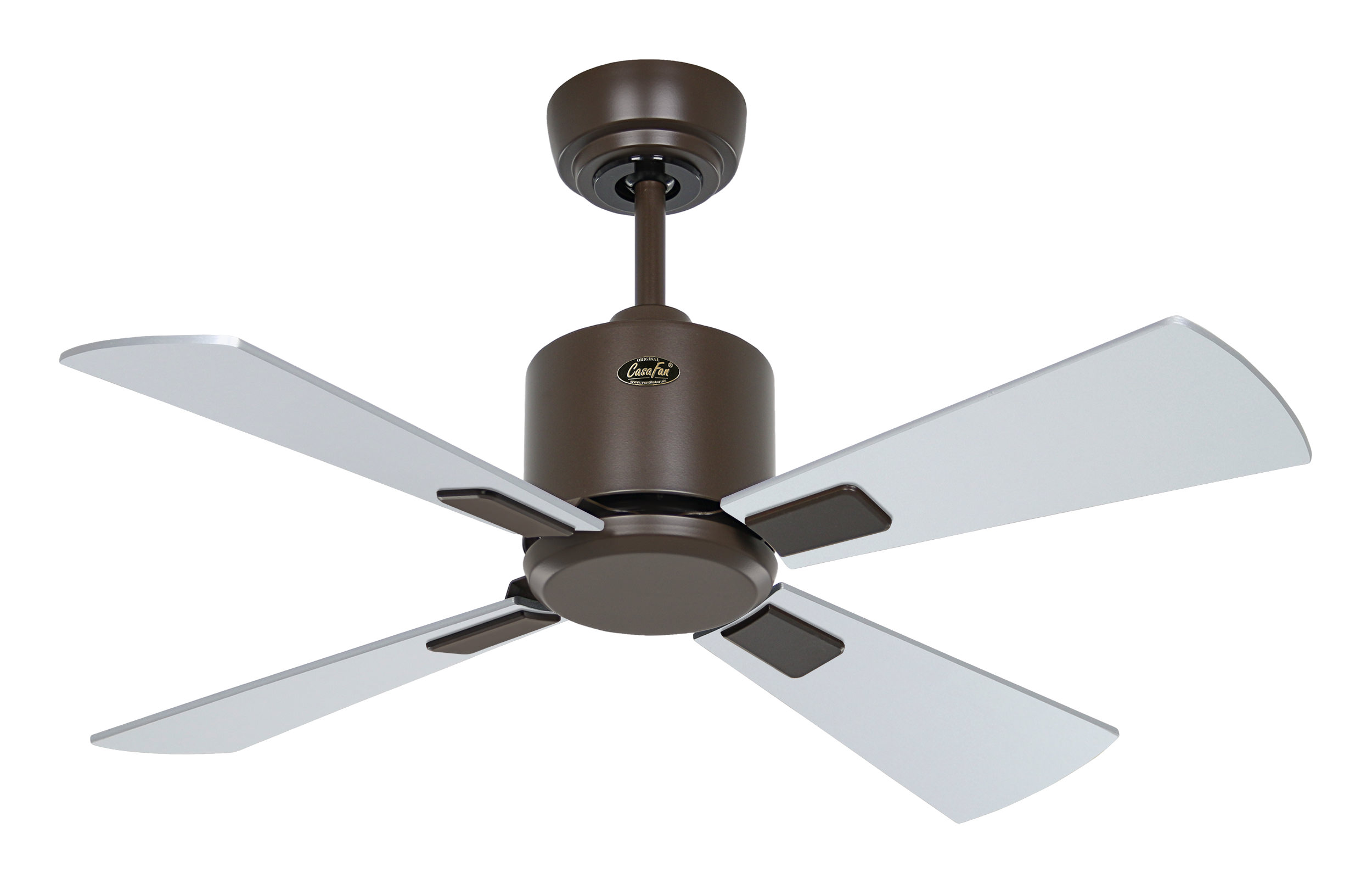

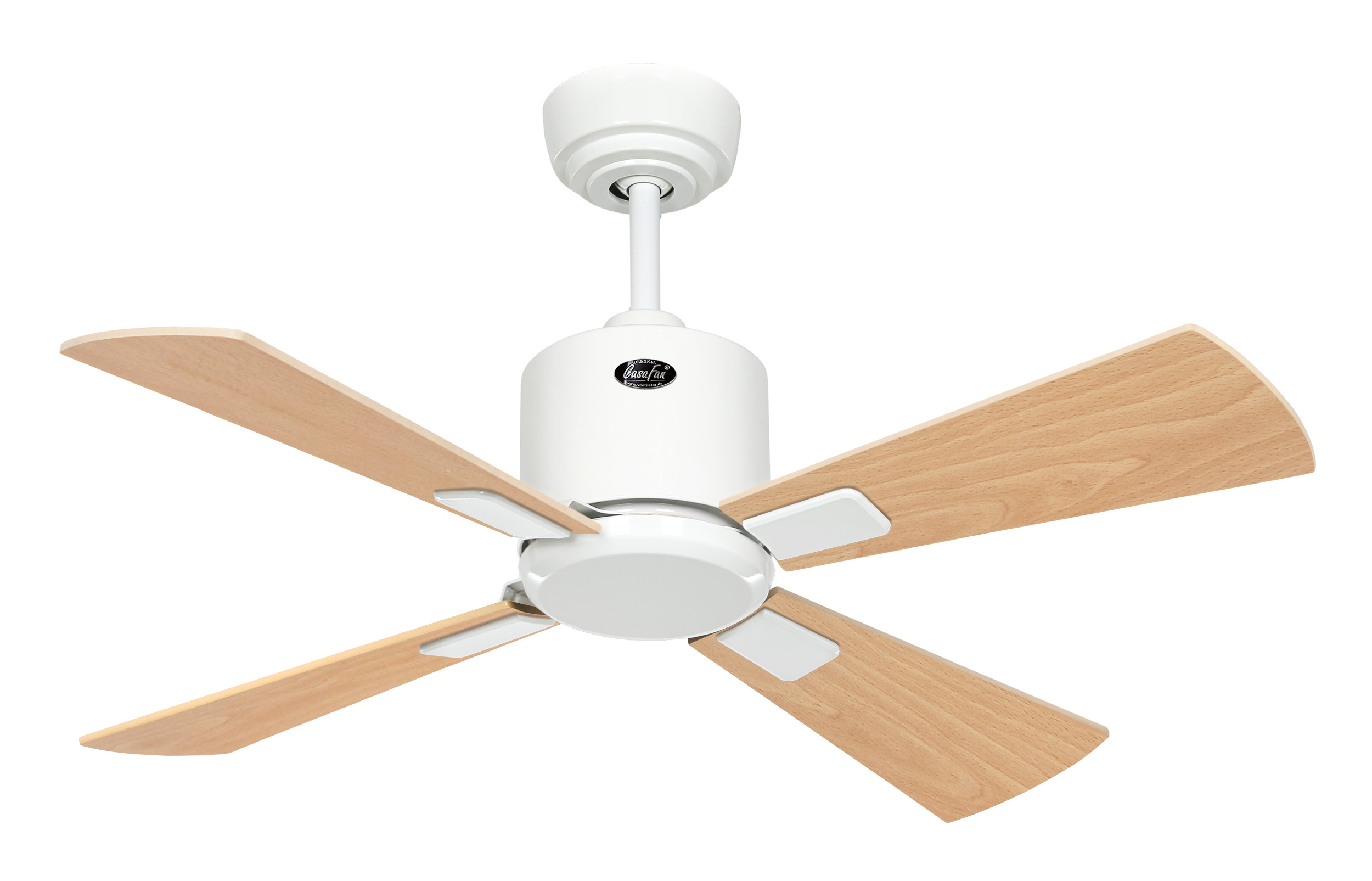

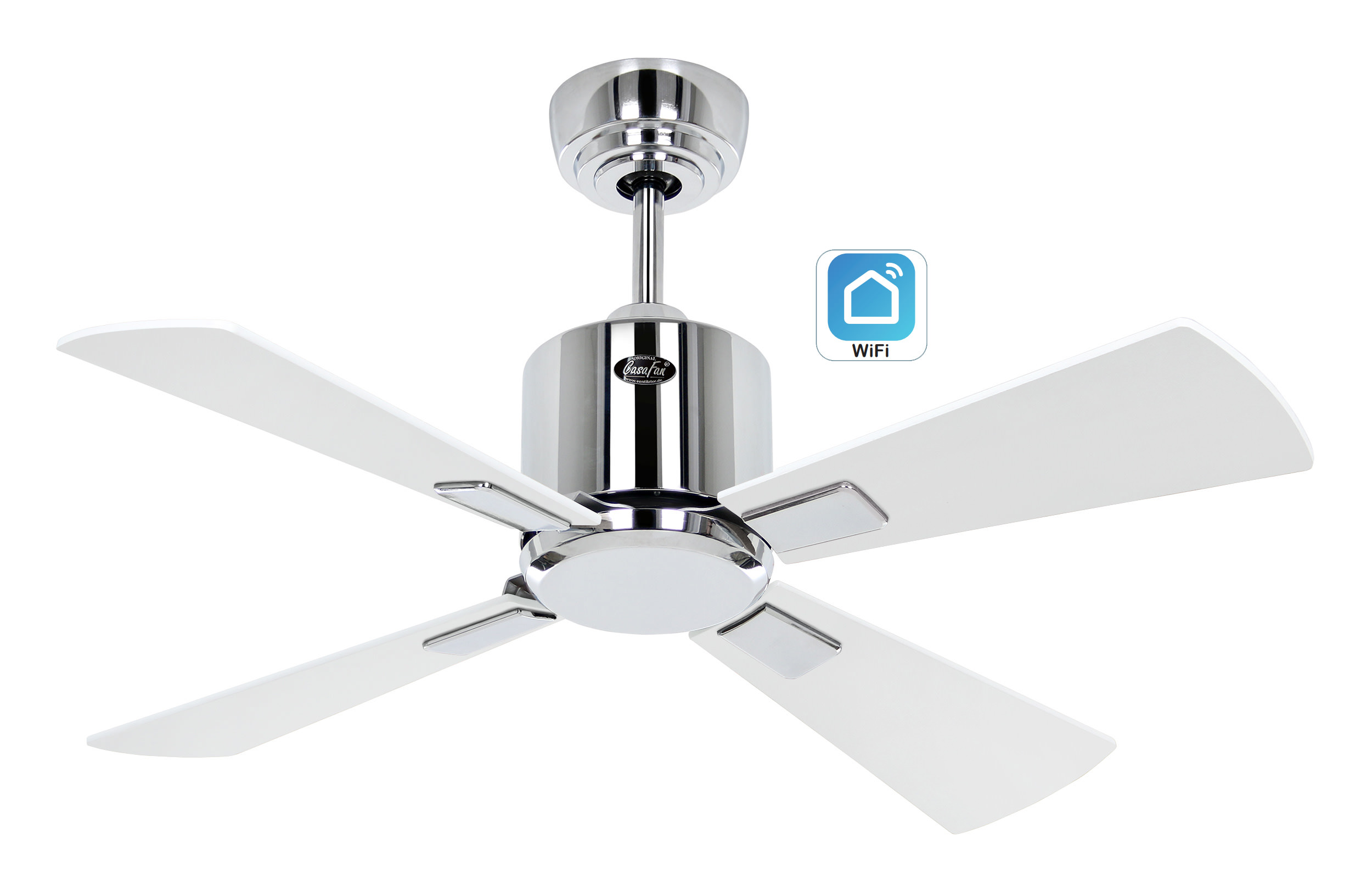

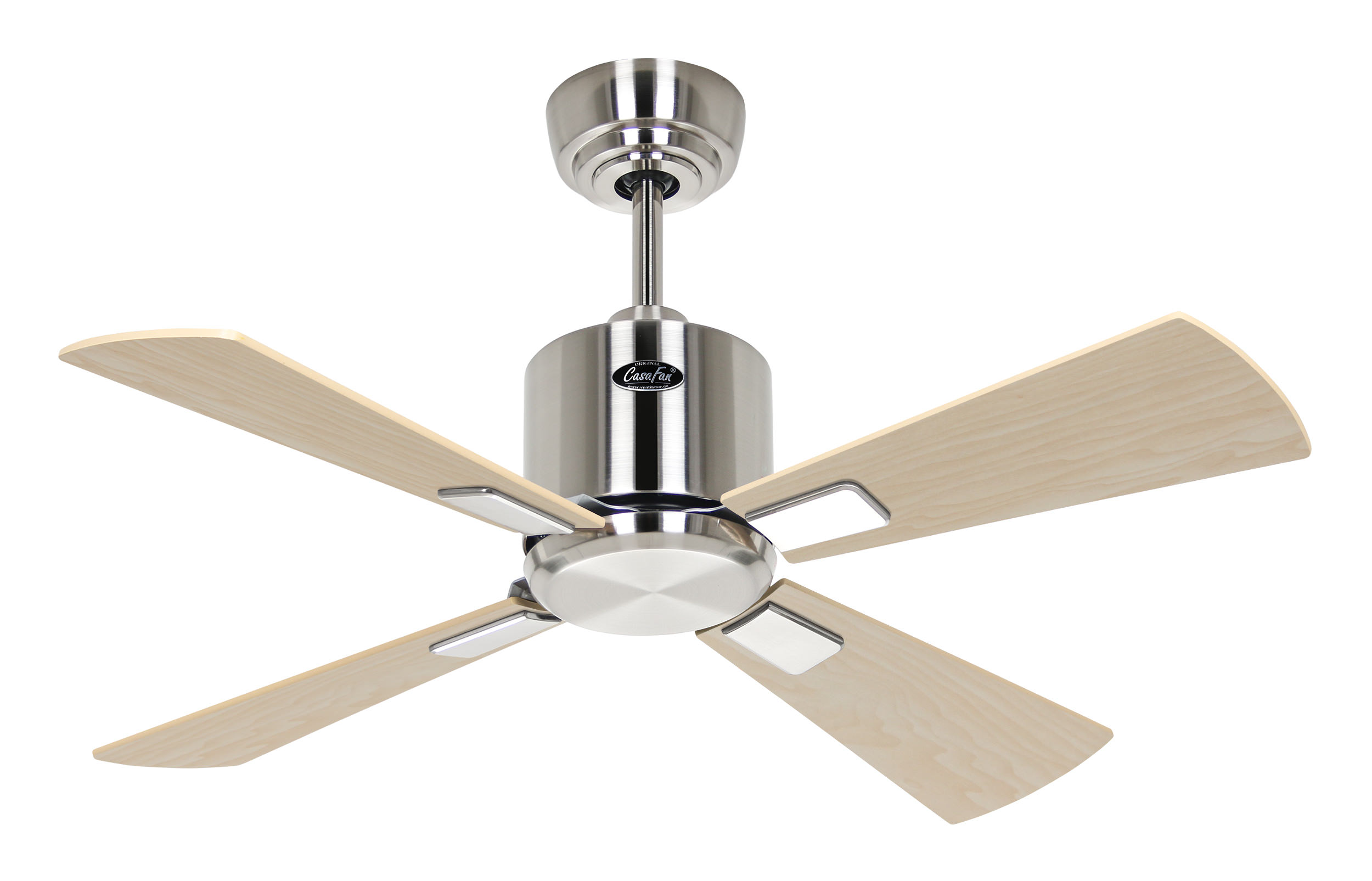

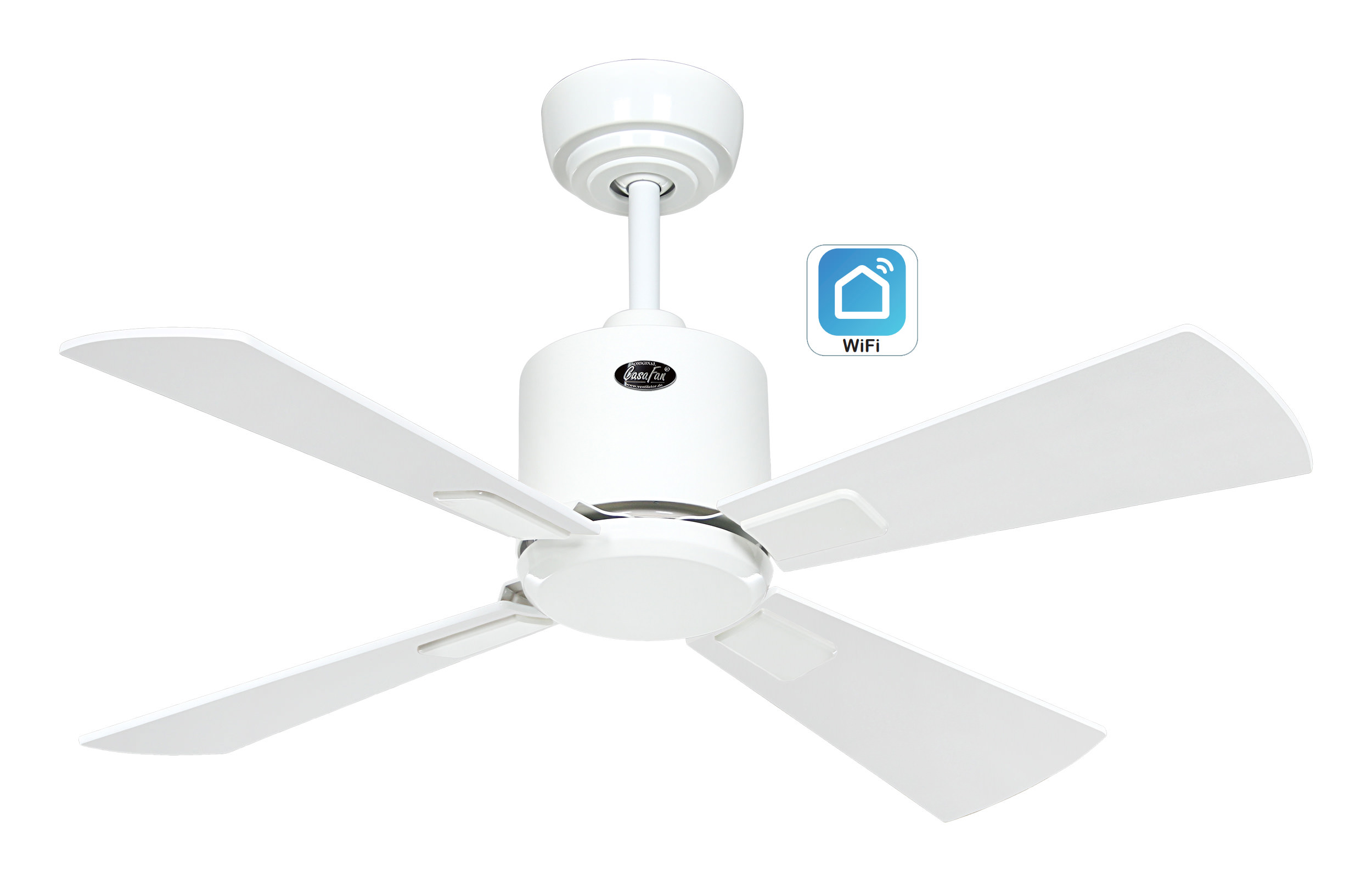

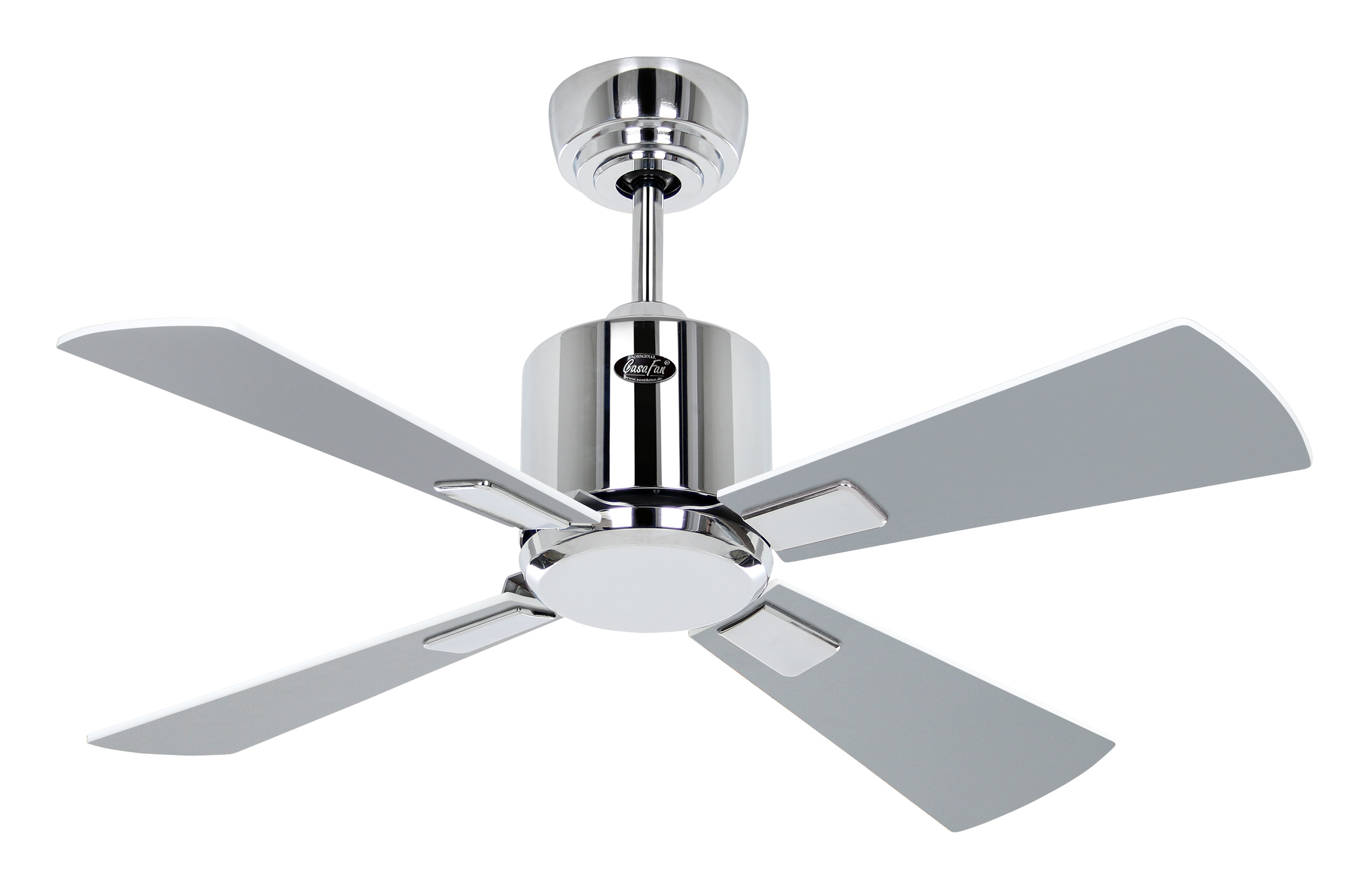

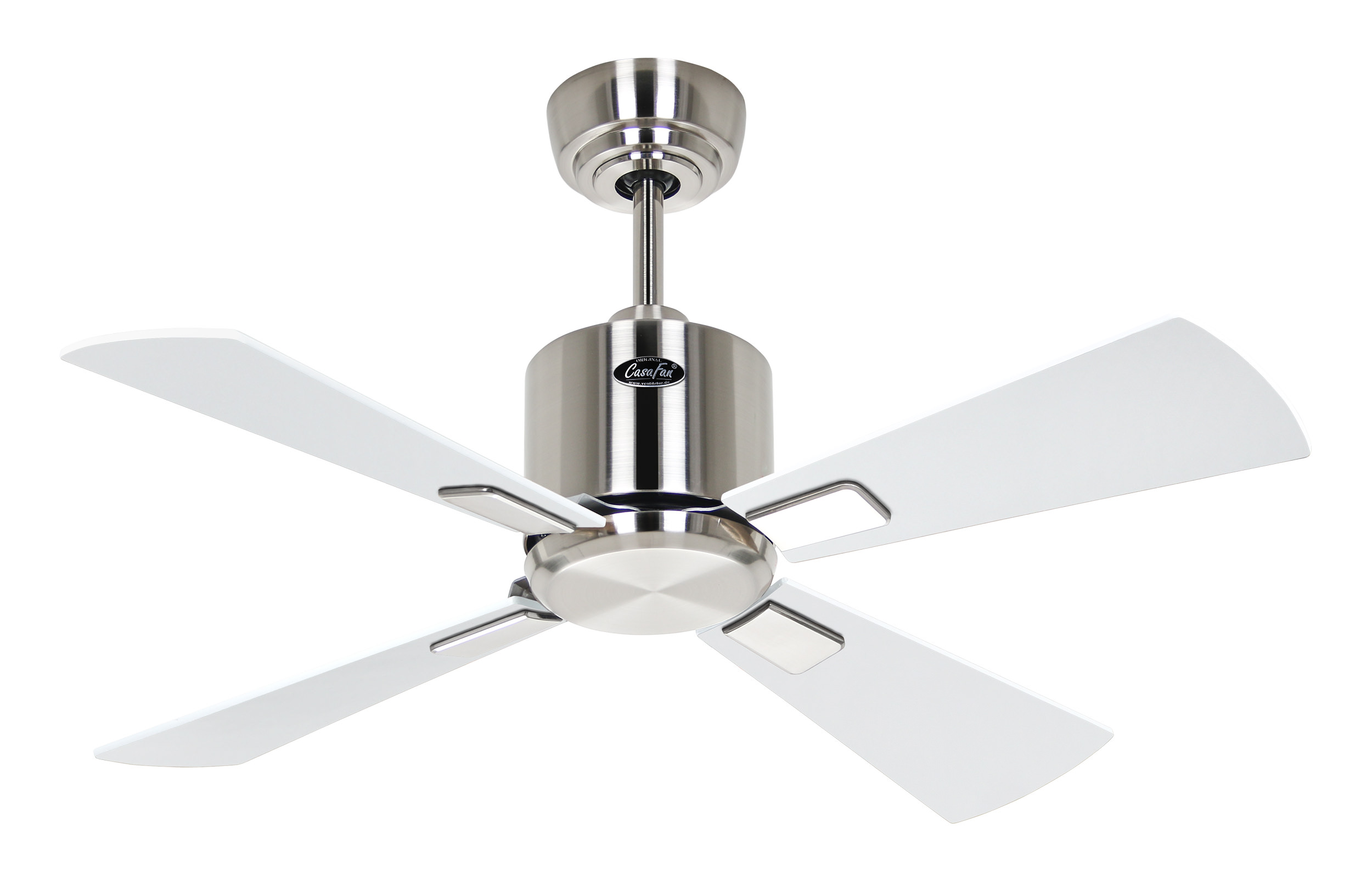

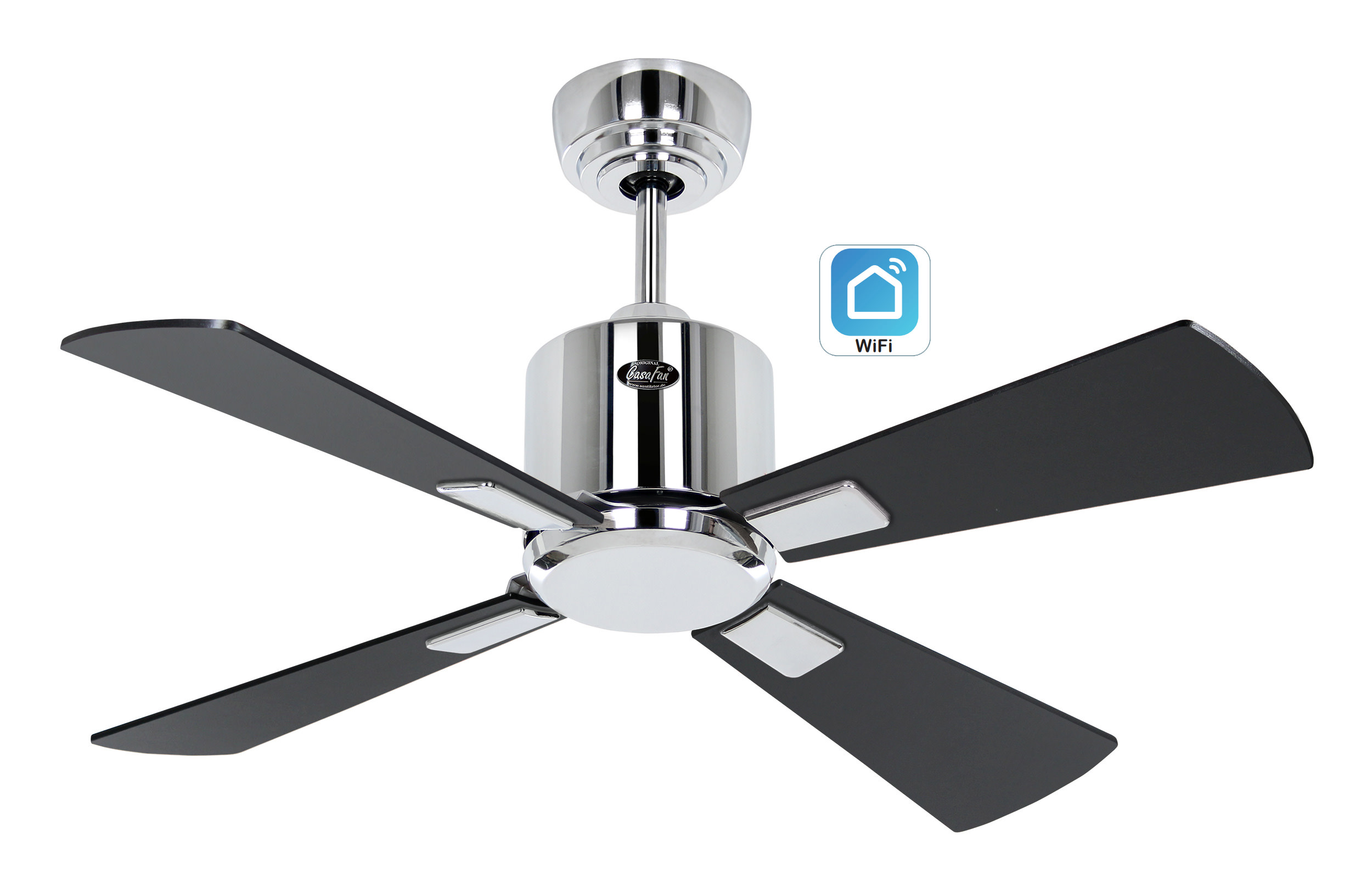

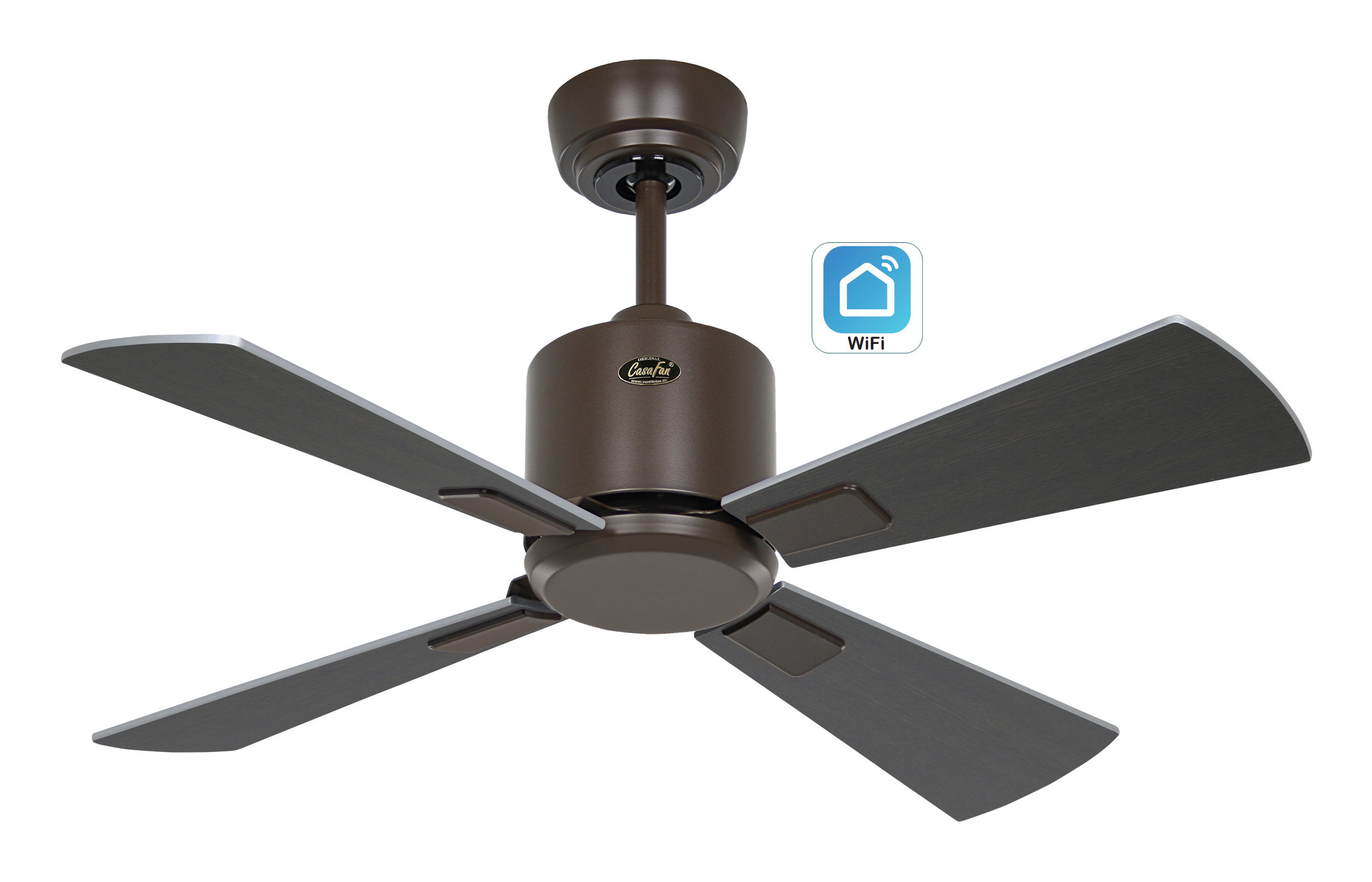

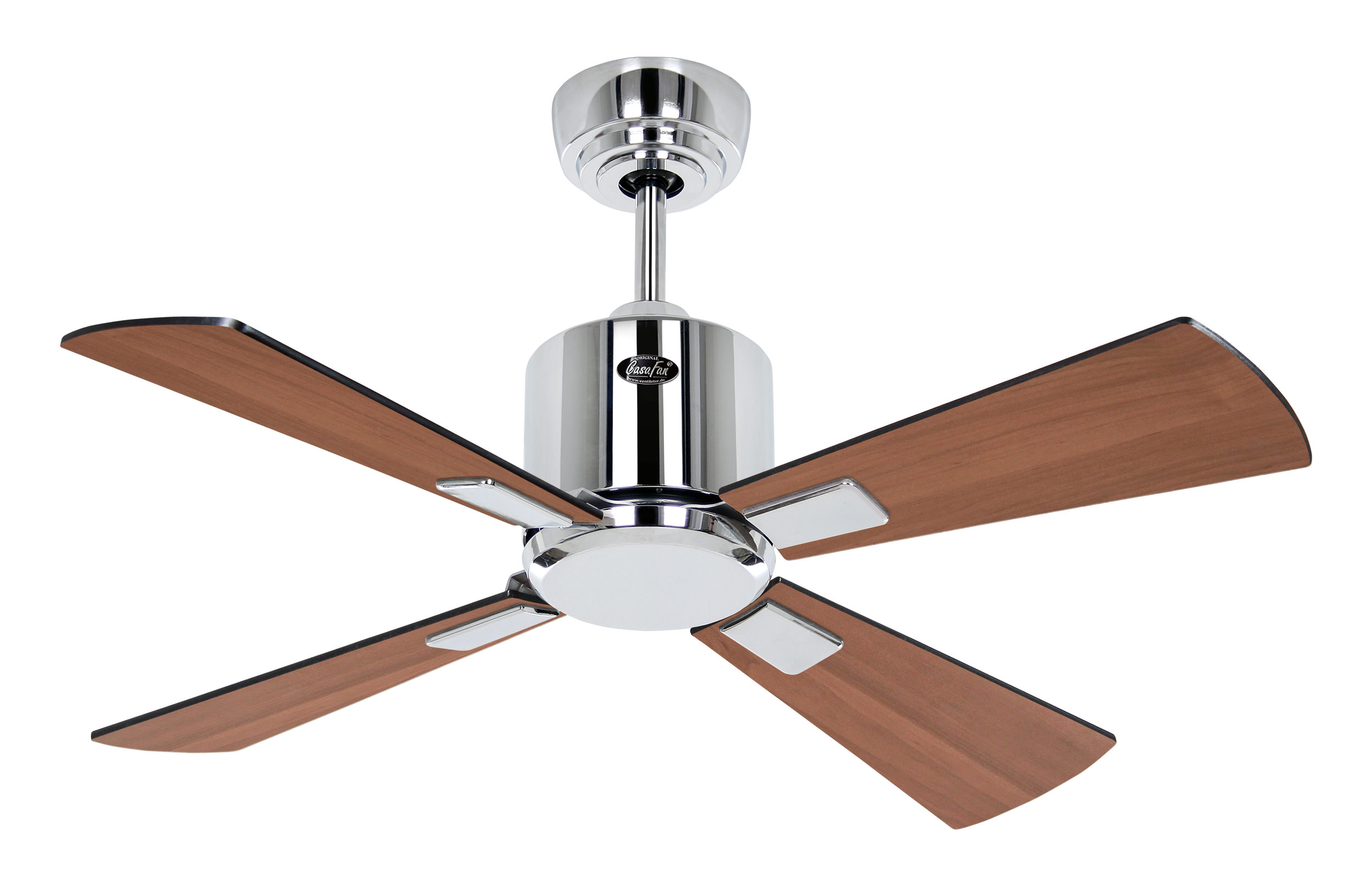

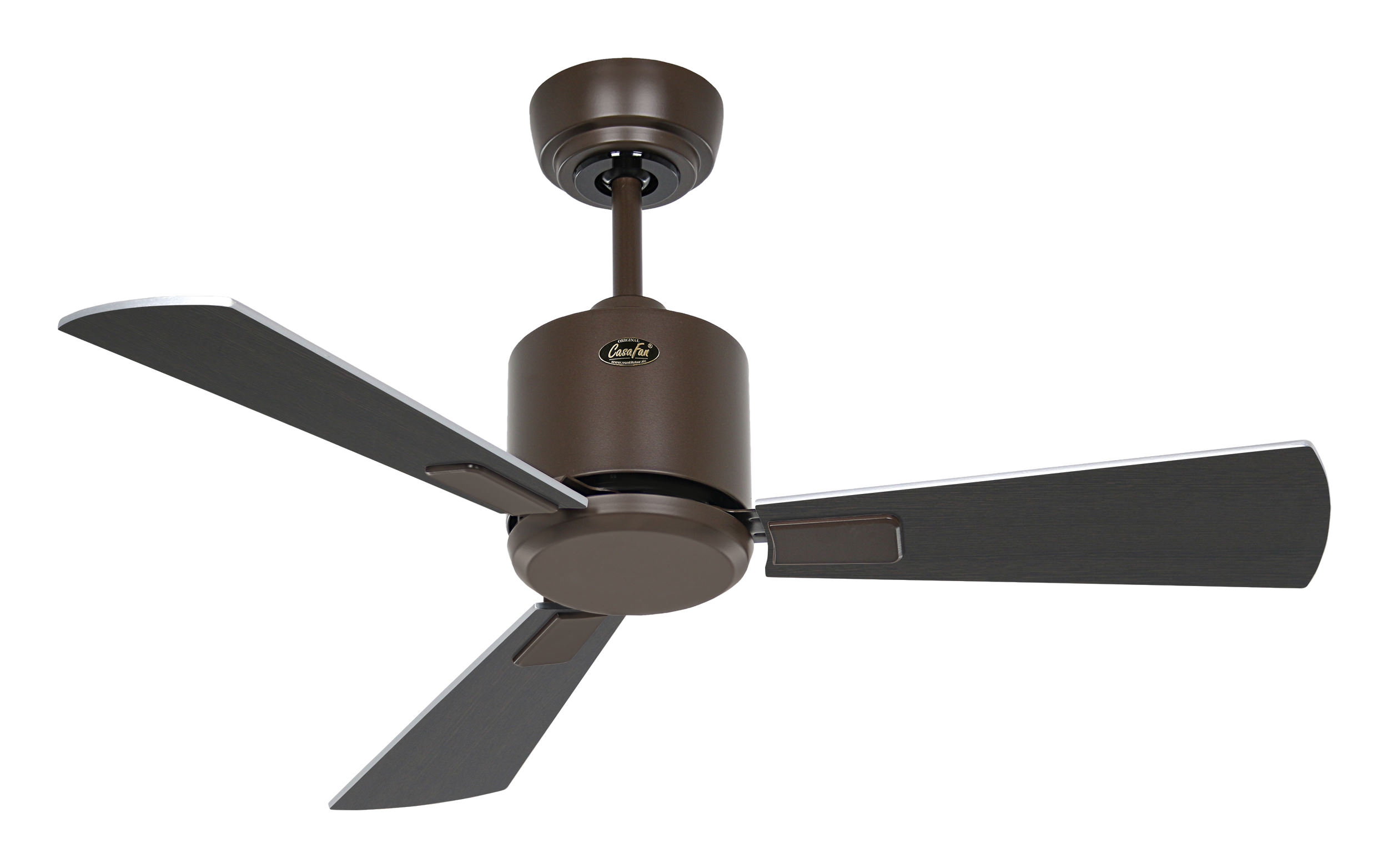

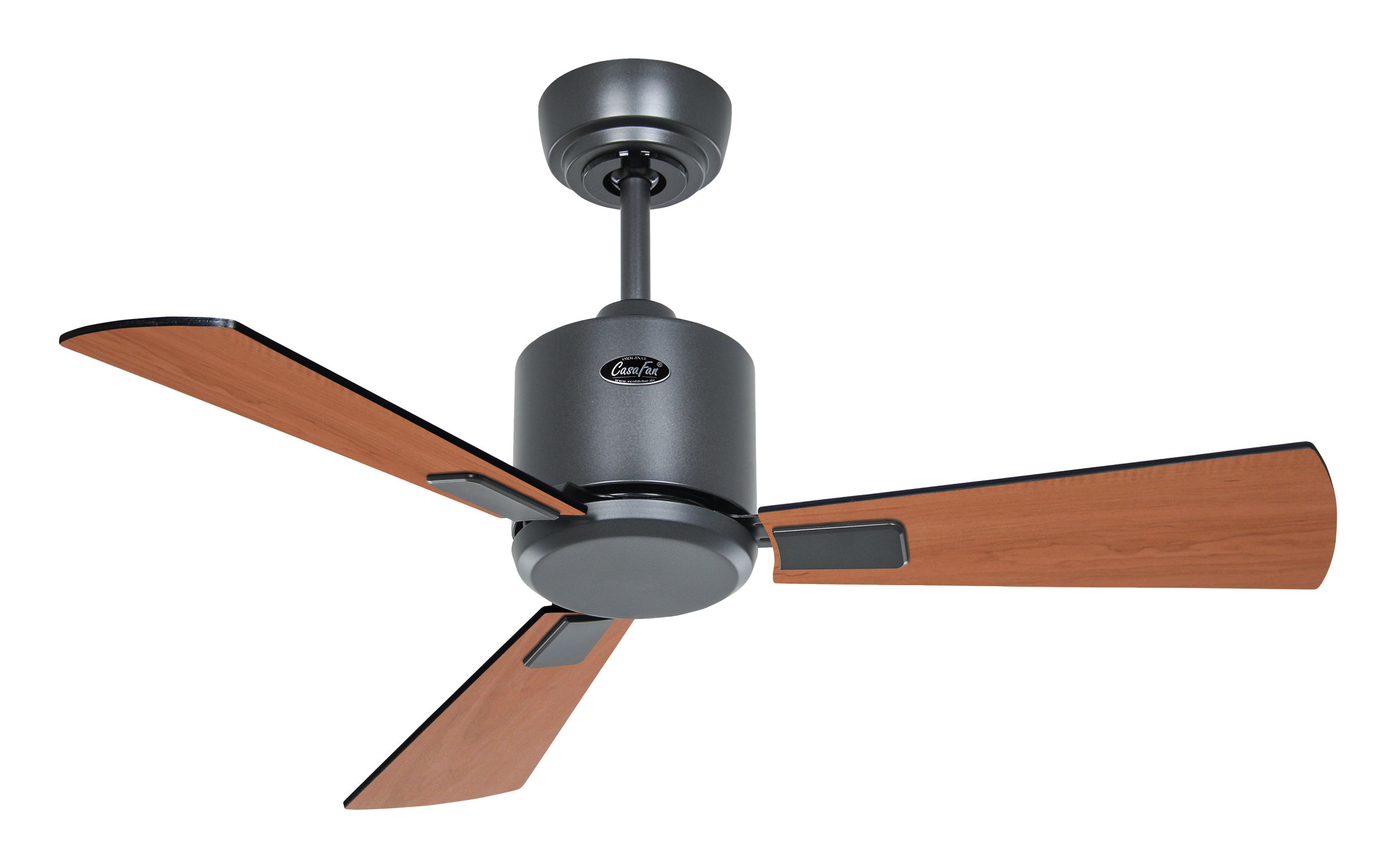

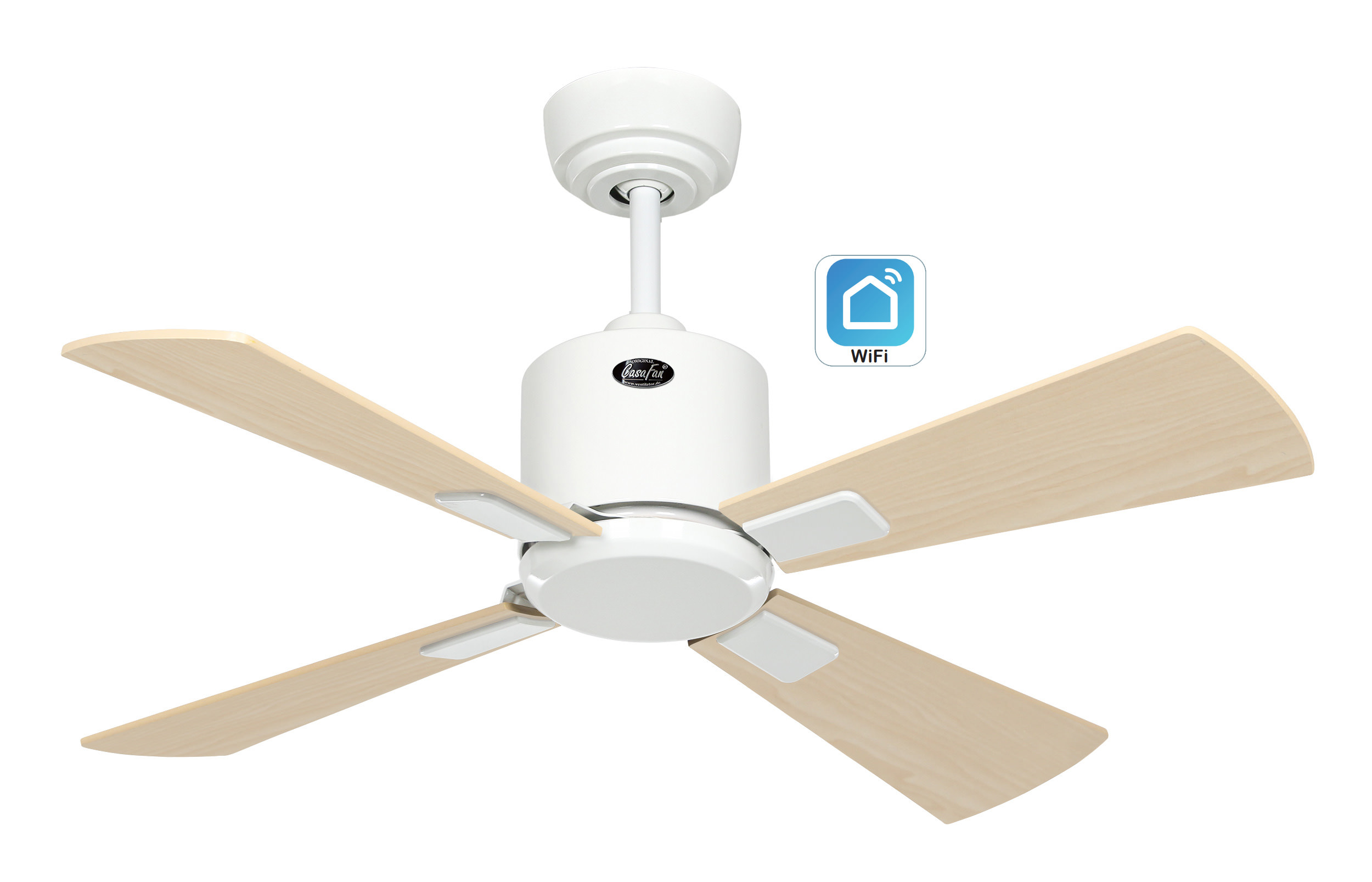

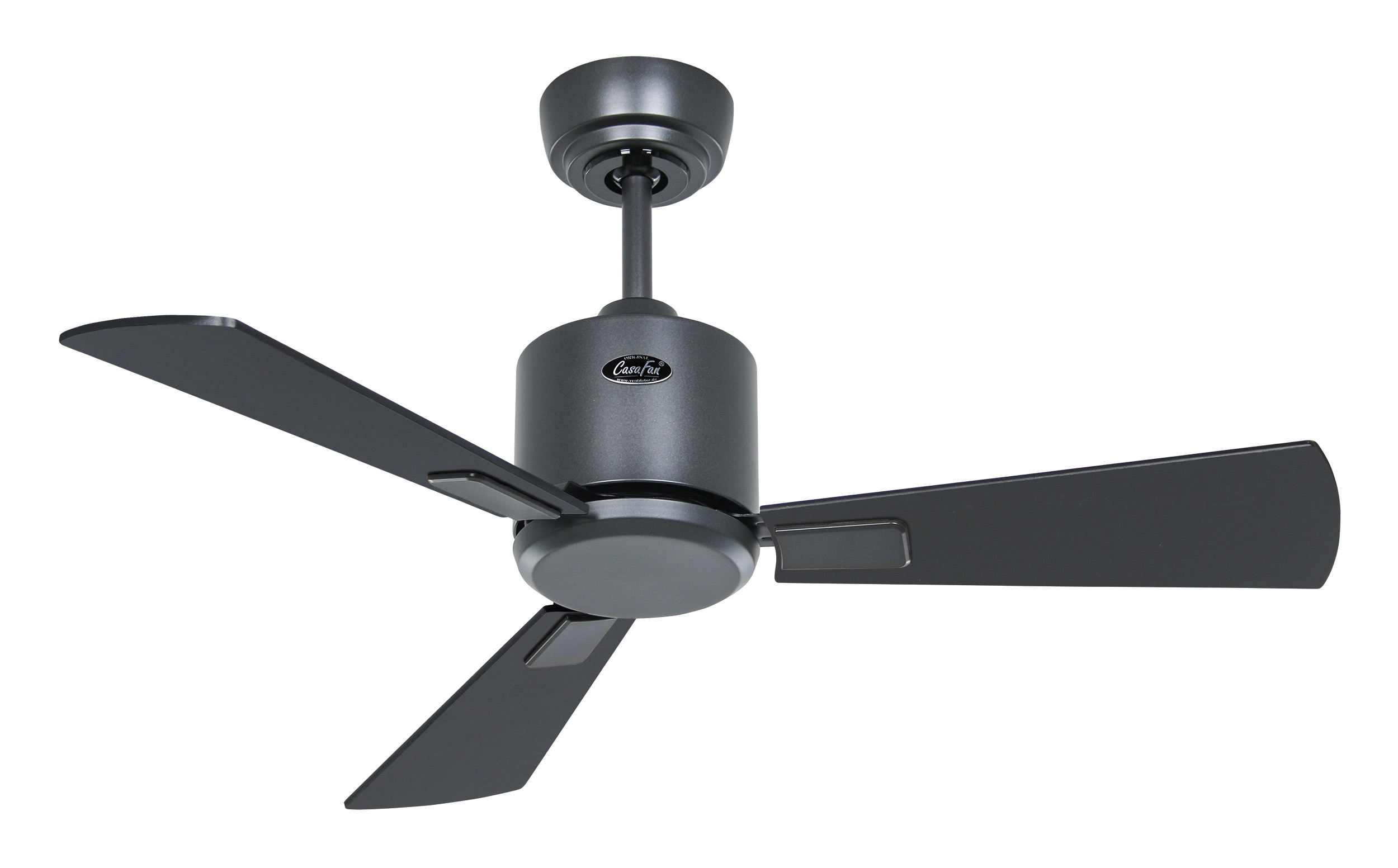

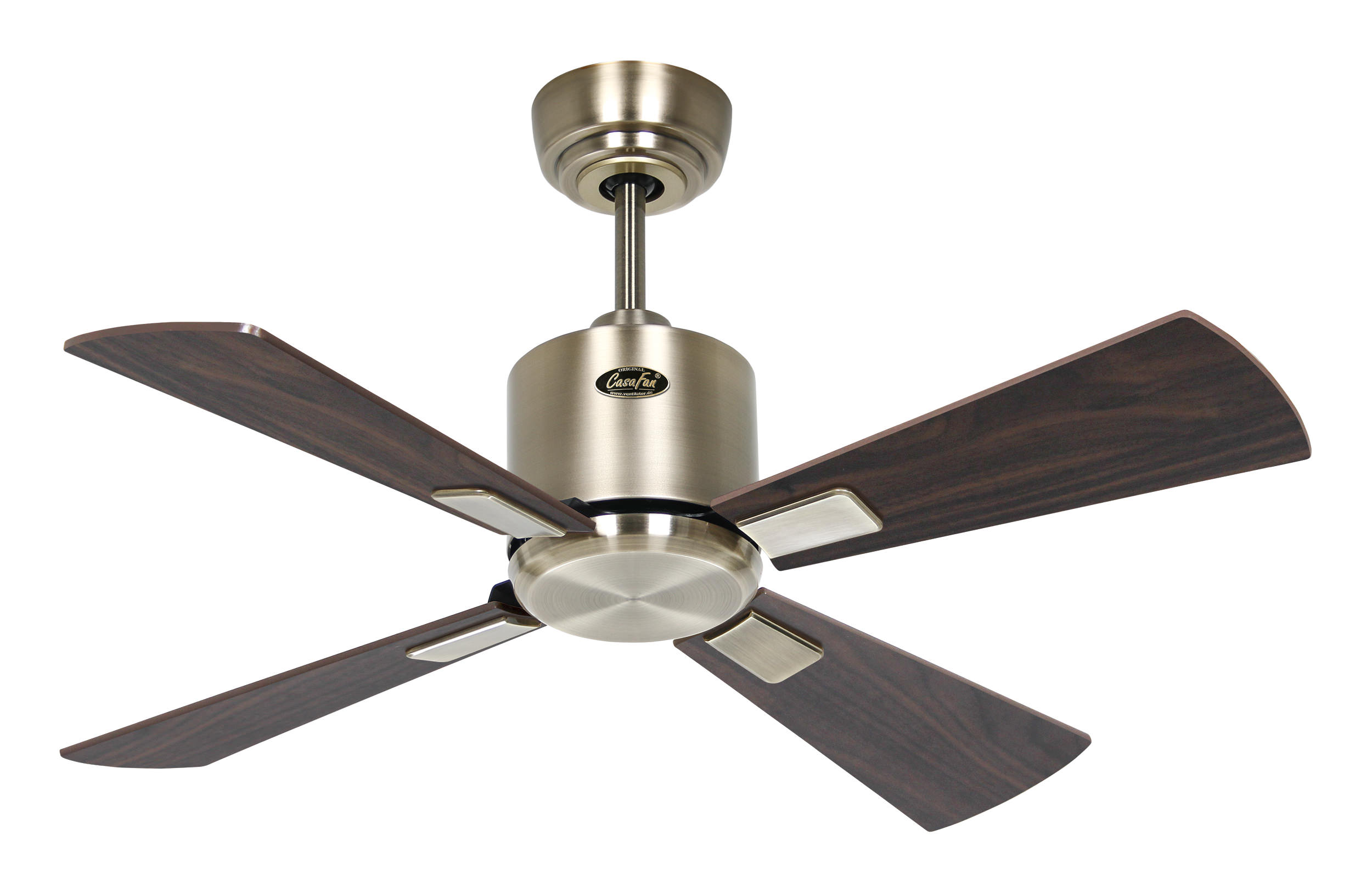

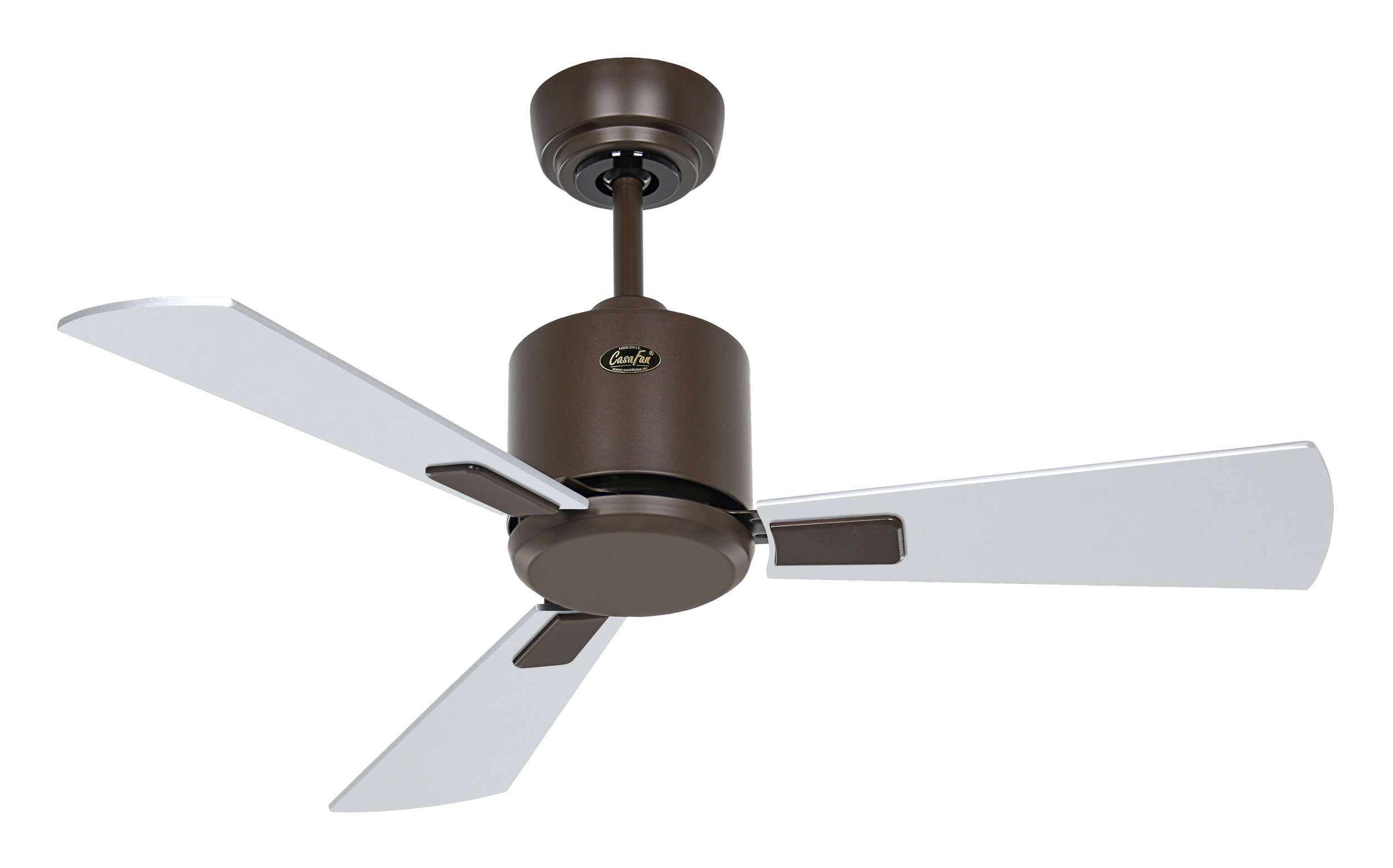

Images – Above we show all the combinations of motor and blade finish for the 92cm size. Below we show the other blade sizes for one finish:

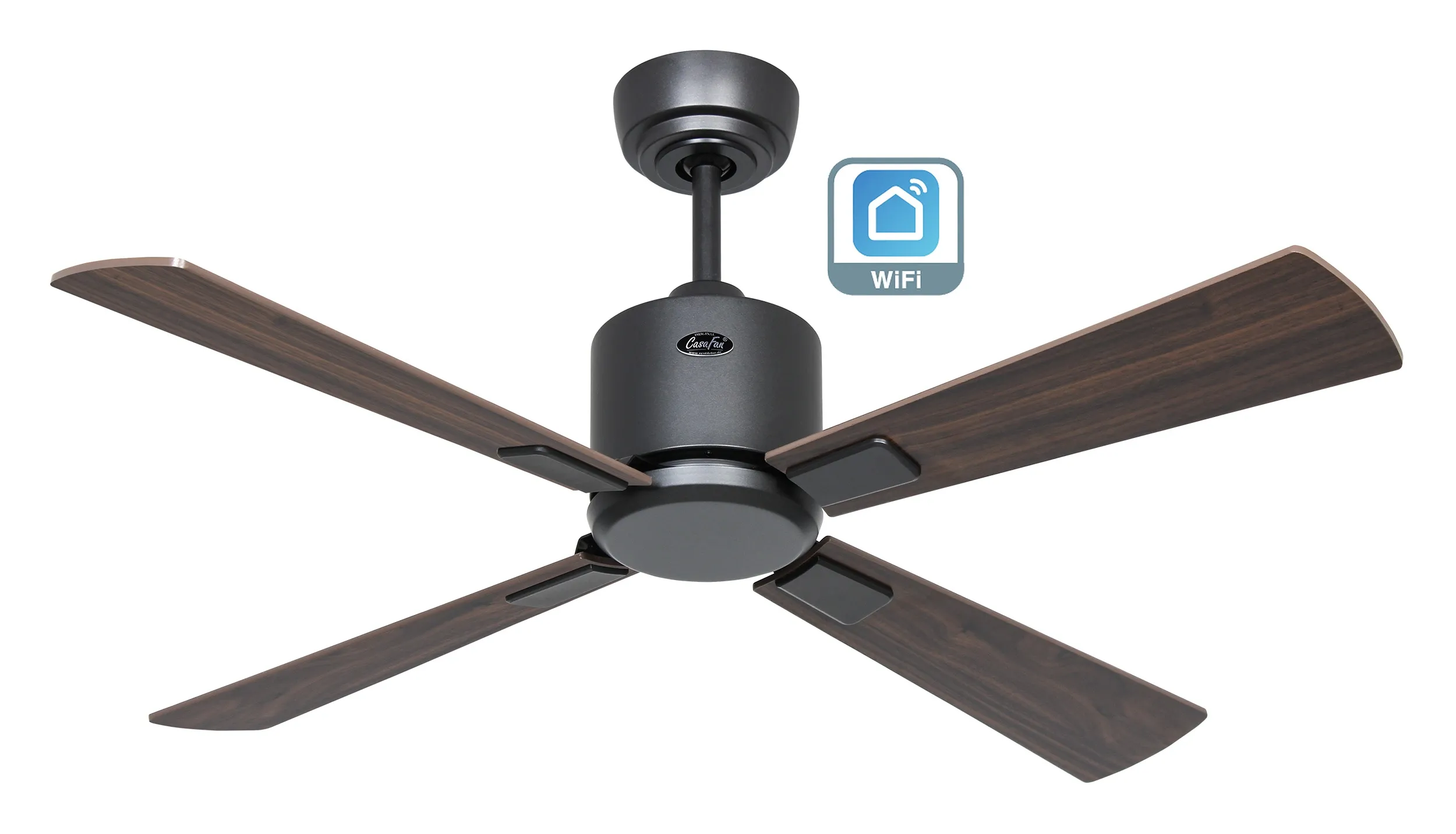

103 cm blade sweep

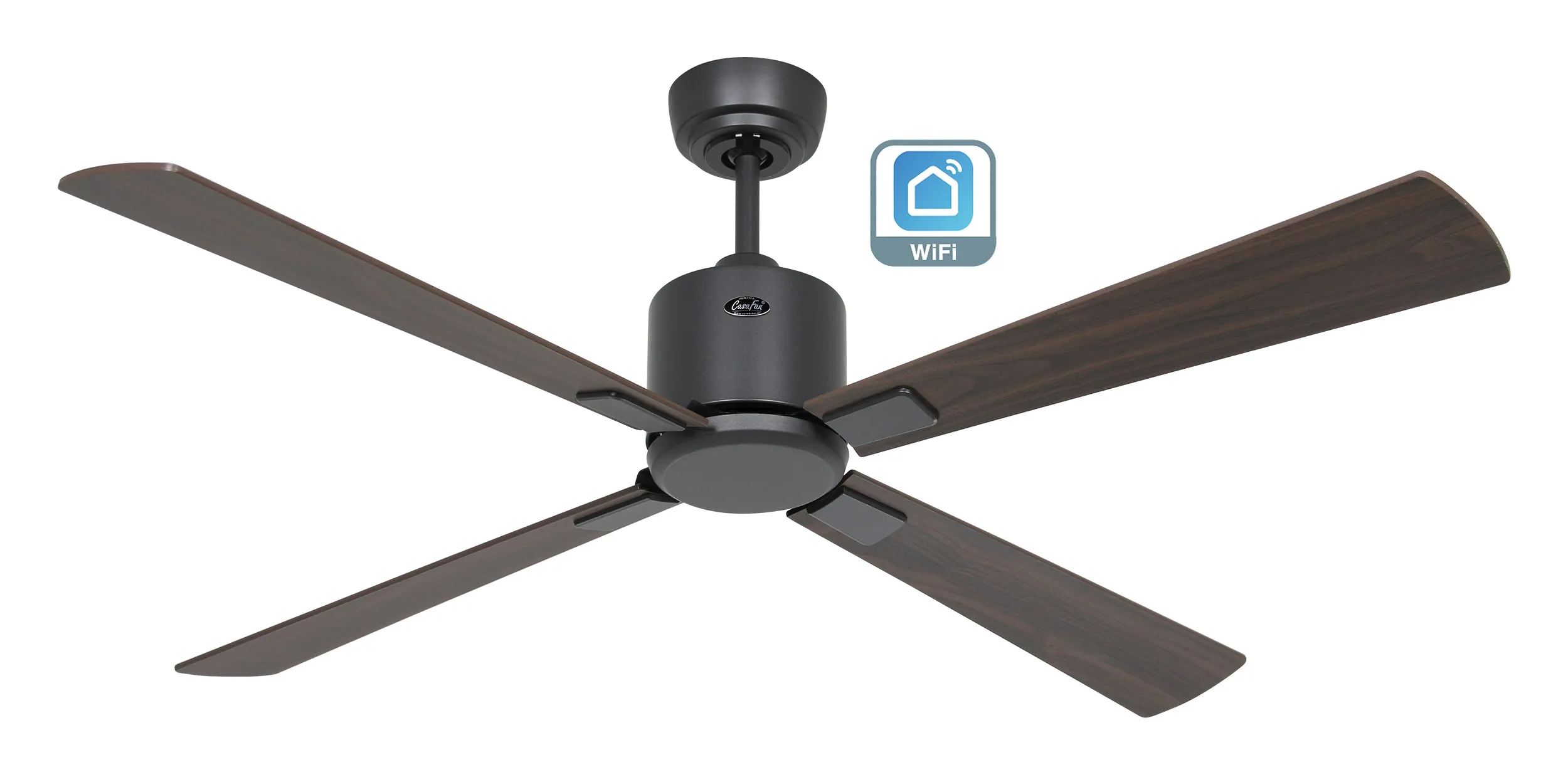

132 cm blade sweep

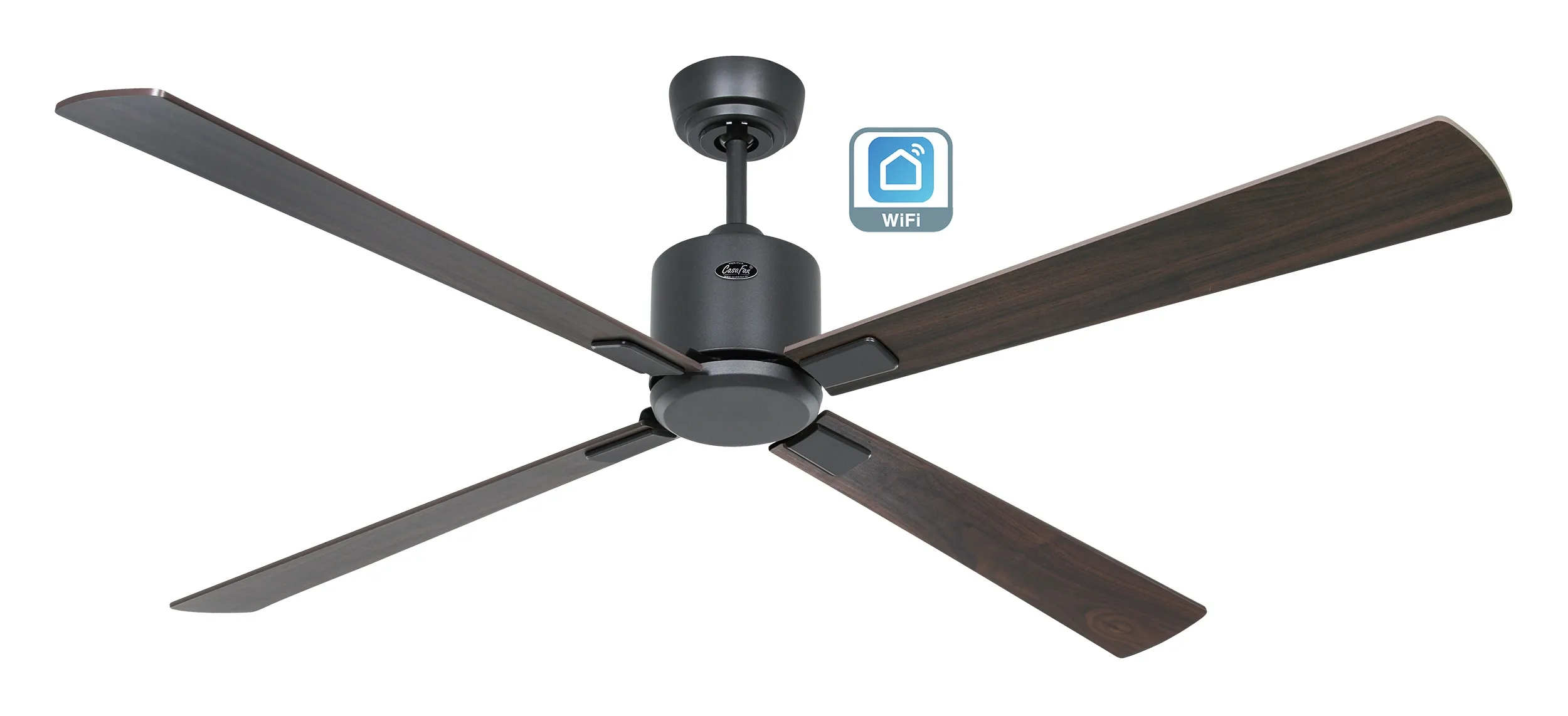

152 cm blade sweep

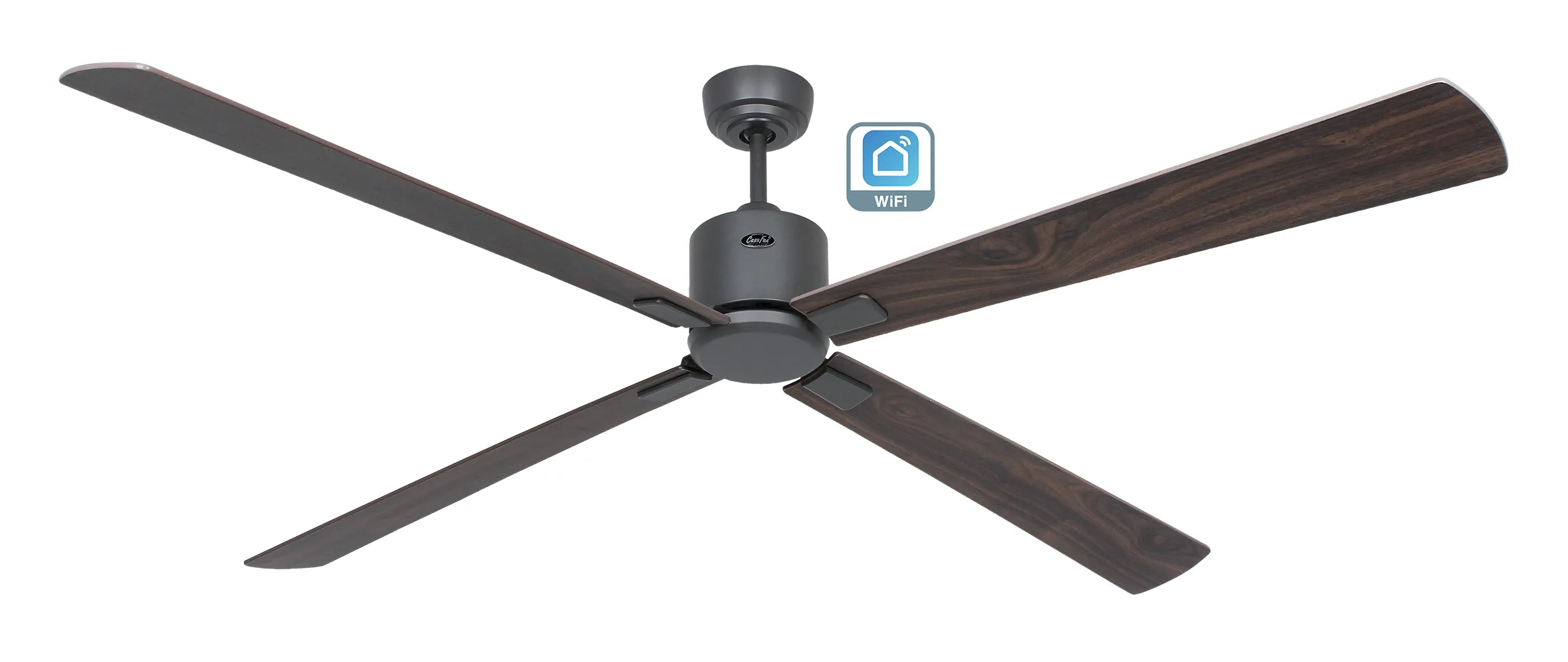

180 cm blade sweep
Video
Accessories

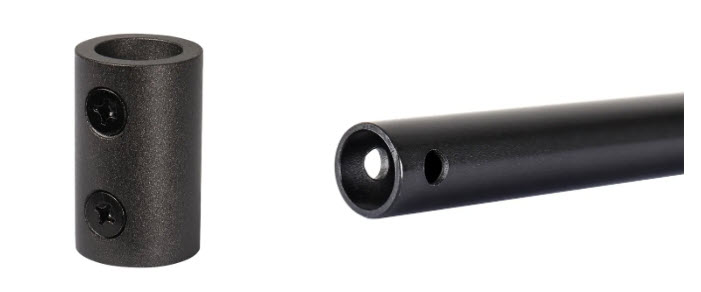

Droprods – Available in matching finish in 60cm and 100cm. These can be coupled into longer rods using a special coupler. Wiring with snap connectors is included.
Light kits – Available in matching finish with different glass shapes, dimmable, 3000K, 12 w, 800 lumen – see separate listing
Wall controls – The Zephyr hotel wall control works with this fan – see separate listing
Dimensions
Manufacturer’s limited warranty against defects in materials and manufacture is 25 Year warranty on the motor and 1 year on the rest of the fan. Any damage due to water, physical or electrical are excluded.
Performance Data
Performance Data for 92cm Blade Size
For other blade size performance data please contact our office.
For ceiling fan models that offer the option of installation with 2, 3 or 4 blades, the measurements were taken with 4 blades.
1 The table shows the maximum speed at the highest setting at 1.5 m above the oor in a 3 m high room. This is to help you estimate draughts at head height, sitting under the ceiling fan. This specifcation refers to the highest speed. A fine gradation of the speed with as many steps as possible enables you to have draught-free operation even in winter when returning the warm air that is under the ceiling.
2 Noise measurements were carried out at the VDE Testing and Certification Institute in Offenbach/Main. The lower limit for the laboratory measurement is 32 dB(A) for sound power LW and 15 dB(A) for sound pressure LP -3m.
3 Since many ceiling fans on the market are published with one or the other value, we provide the measured noise values both as sound power LW and sound pressure LP-3m..
Wiring
Your ceiling fan requires a power supply on the ceiling where it is to be installed. Since laying additional cables later is often very time-consuming or simply not possible, we have designed all of our fans so that they can be exchanged for an existing ceiling light. Below you will find the wiring diagrams for the model. A switched phase or continuous voltage is standard.
