Hunter Ceiling Fan Control Wire Harness Repairs – Start & Speed Capacitors, Reverse & Speed Switches – 240 v Genuine Parts

Description

Hunter Ceiling Fan Spare Parts – Fault Finding and Repairs

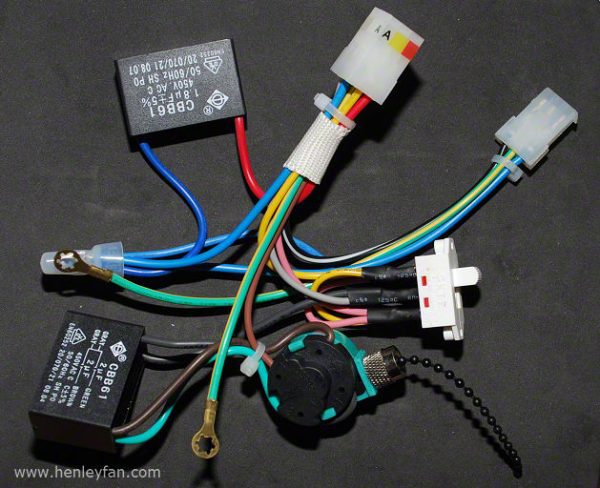

Wire Harness Ceiling Fan Control Assembly

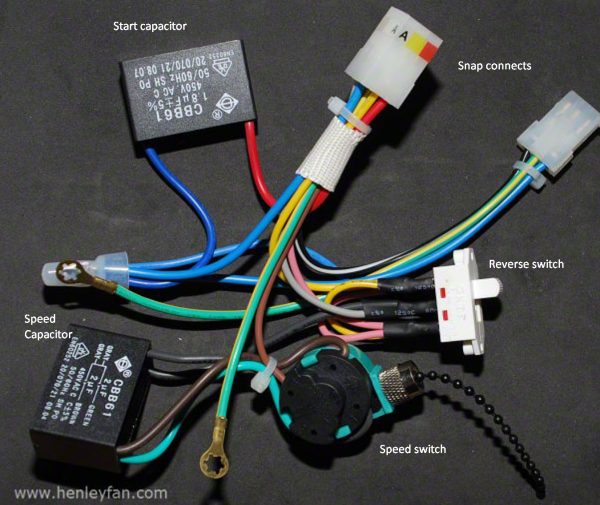

We stock genuine original spare part wire harnesses for most of the 240v Hunter ceiling fan range.  The wire harness sits in the lower switch housing underneath the motor and manages the control of the motor i.e. start, direction, speed and stopping.  It typically comprises of two capacitors one of which is a start capacitor the other one a speed control capacitor, a reverse switch and a speed switch.  Together these start the motor and change and control it’s speed when power is sent to it from the mains either via the pull-chain or remote control receiver.  Since there are many variations please contact us to obtain the correct one.  They have the correct Hunter connectors so you can quickly (around 15 min job) and easily replace them if you are a competent DIY person.

Replacement Hunter Fan Control Components & Parts

We also stock individual components for a wide range of Hunter 240v models including start and speed control capacitors, speed and reverse switches.  These do not have snap connectors and need to be installed by an electrician or competent DIY person who can solder or connect them correctly.  NB: It is importance to check the capacitor size in  UF for your capacitors and the speed ones usually have 2 combined into one larger one.  Since the motor unit themselves are extremely reliable and have a Lifetime Warranty this is the only part that really fails over time and so replacing it should extend the life of your fan by 6-10 years possibly more depending on use.

Note:

• Price includes UK mainland postage and packaging.
• These are genuine original Hunter spare parts and warrantied for 1 year.

Wire Harness Fitting Instructions

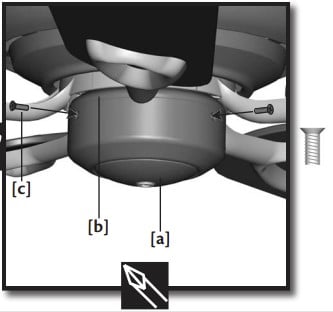

Only perform this repair if you are a qualified electrician or competent DIY person.  Ensure that the power is turned-off to the fan by switching off at the wall and/or the consumer unit. Double-check using an electrical screw driver that there is no power there. Then remove the lower switch housing (d) by removing the 3 screws (c), disconnect the and remove the old wire harness by releasing the connector (c) block flap and detach the reverse and speed switches from the housing.  Then connect the new wire harness ensuring that the wire colours line up exactly and refit the switched.  Secure the earth wire using the existing screw.  Reconnect the power for a minute whilst you test that it all works ok then turn off again.  Then reattach the housing cover and 3 screws and reconnect the power again.

Note:  These should not need replacing very often, maybe once in 6-10 years depending on the use of the ceiling fan.  If you are finding that they need replacing more frequently then please contact us as it is indicative of an underlying problem with your motor.

Hunter Industrie and Tribeca Ceiling Fan Models

These fan models have the wire harness at the top of the motor not below it – please refer to the installation manuals or contact us if you need further help.

Troubleshooting and Fault Finding Your Hunter Ceiling Fan

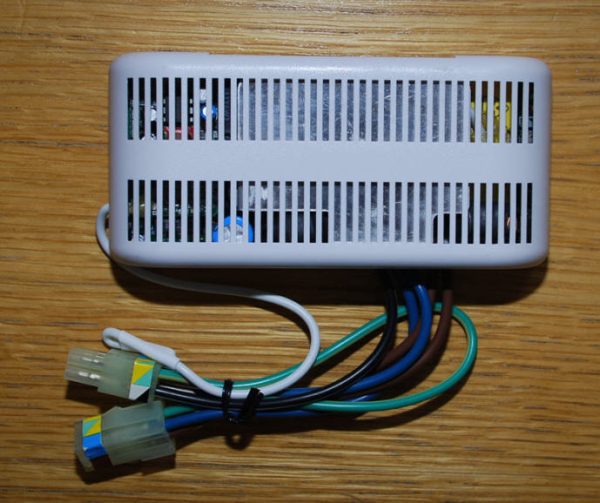

If this doesn’t resolve the fault then get your electrician to check that you have live power coming in to the harness using a meter or electrical screwdriver when the fan it turned on by the remote of pull chain.  If not then check that there is power leaving the receiver and if not then the receiver is faulty (assuming that you have live going into the receiver).  We sell Hunter and our own brand more robust replacements for these called the Henley Fan Powerboat remote control pack (see below for link – ensure that you get the one with the Hunter connector blocks on for quick and easy fitting.)

If you do have power coming into the wire harness when the fan is turned on then it is possibly the motor that is damaged or blown.  You can test for continuity with a meter.  If you purchased the fan from us then please contact us to arrange for an RMA number to return the fan to us for free testing, checking for damage and possible warranty replacement of the motor.  If it is due to physical, water or electrical damage then this is not covered by the warranty which is only for defective materials and manufacture, then we can advise on repair costs.
