Matthews-Atlas Melody Art Nouvaeu Oscillating Wall Fan

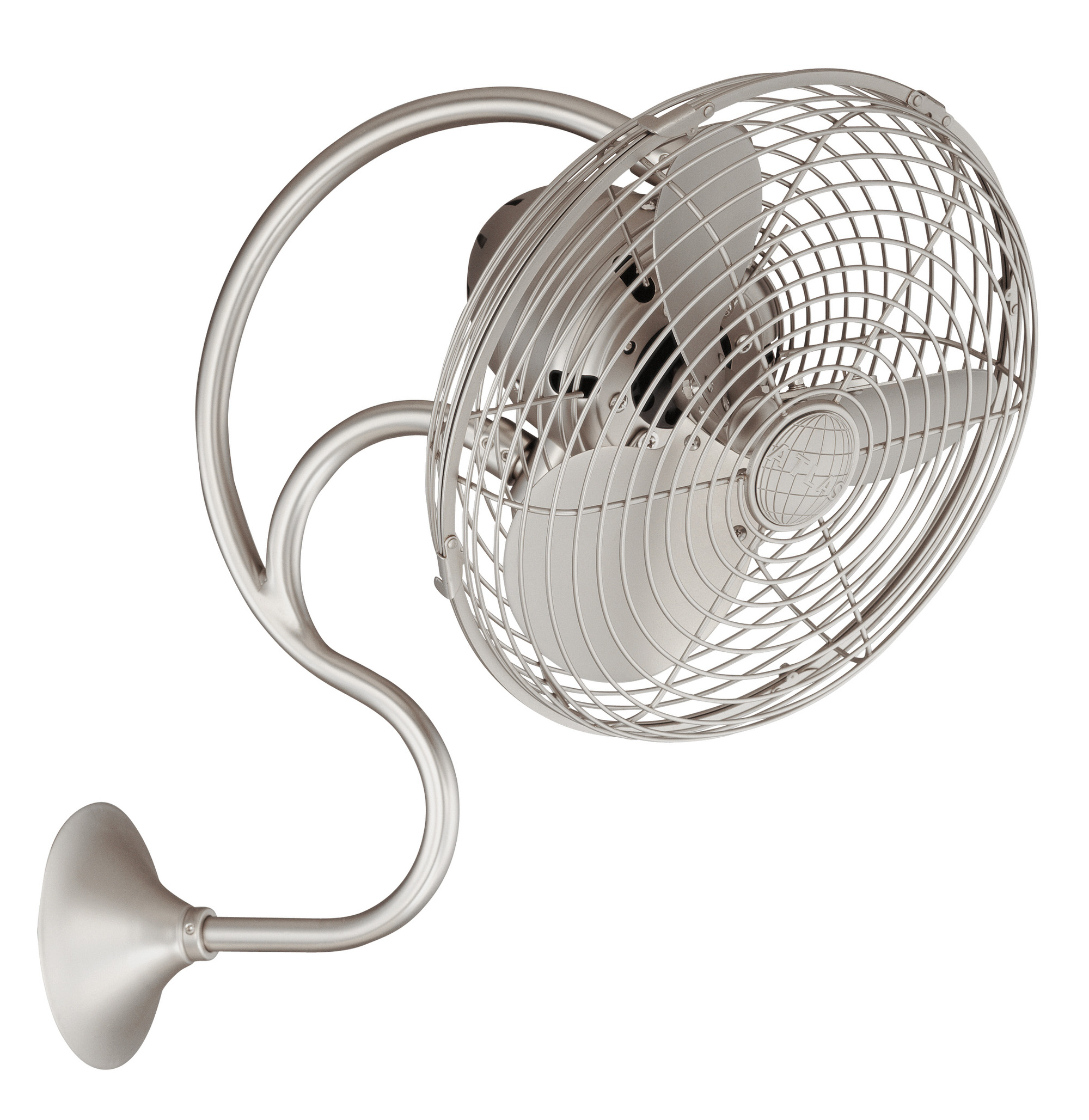

A delightful and unique wall fan, the Art-nouvaeu style wall fan with a grand arching goose neck which oscillates for maximum airflow coverage and provides quick room cool-down.



Matthews Fan Logo copy

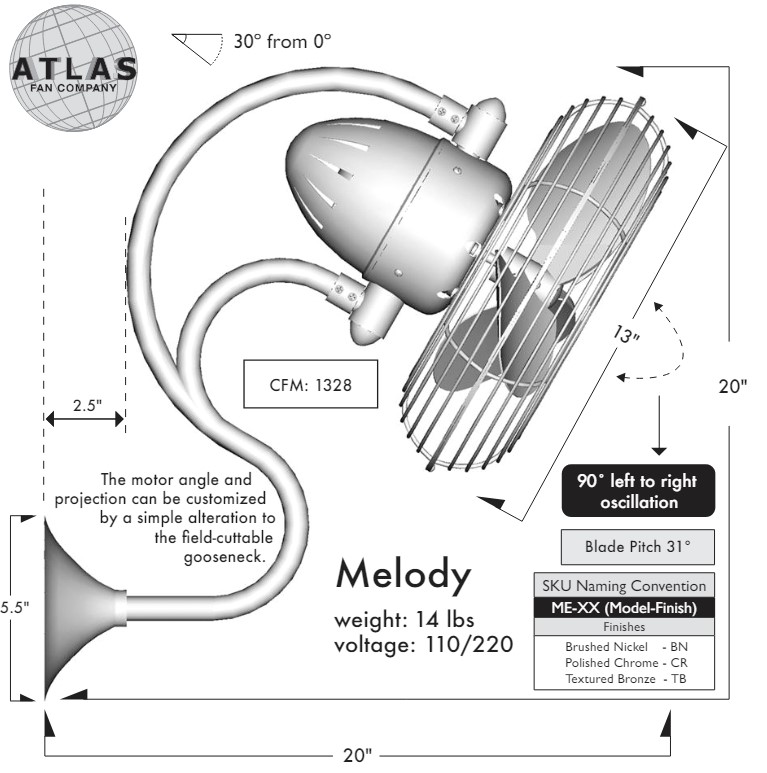

The Melody is an oscillating, 3 speed wall-mounted fan, designed in the Art Nouveau style with a grand, arching goose neck which provides for maximum multi-directional airflow. The Melody can be mounted in small, awkward spaces or in front of HVAC ducts to make more efficient the heating, ventilation or air conditioning of any space.


– Available in brushed nickel or textured bronze.
– 220V-50HZ
-Constructed of cast aluminum and heavy stamped steel.atlas_at_henley_fan
– Equipped with hand-balanced metal blades and metal safety cages
– 3 speed wall control and side-mounted wall junction box are included
– Run watts 49
– A three-wire system is needed to operate the oscillation mechanism independent of the fan blades
– UL and CE approved
– Suitable for damp or humid location not salt water or ocean front
– Airflow 2,260 m3/h = 1,328 cfm
– Fully adjustable motor angle and projection
– 90° Left to right oscillation
– 31° Blade pitch
– Limited Lifetime Warranty

Download specification sheet.

Melody Fan Installation Manual

Additional information

Motor Finish


Blade Colour (both sides)



Blade Colour

, , ,

Product Type

Fan Size


Control Included




, ,

Number of Blades


Year Launched

DC Low Energy

Reversible Motor

Air Flowrate m3/h

Air Flowrate cfm
